Tachometers

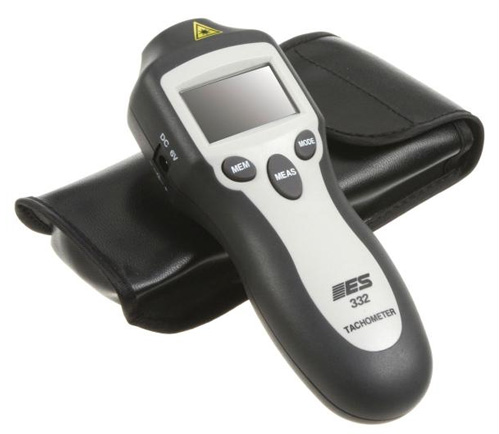

ES 332

Features

  • Non contact Measurement
  • High intensity laser beam not affected by shop light
  • Simple operation, just aim at reflective mark to get RPM
  • Memory function saves maximum and minimum RPM readings
  • Easy and accurate measurement of RPM on coil-on-plug and diesel engines, where conventional inductive tachometers cannot be used. Can also be used on generators, compressors, industrial engines, fans, gears, etc.

  • Technical Data
    Display : 5 digit 16mm LCD
    Test Range : 2.5 - 99,999 RPM
    Accuracy : ± 0.05% + 1 digit
    Range Select : Auto Ranging
    Detection Range : 50 mm to 500mm
    Time Base : Quartz Crystal
    Power Comsumption ( approx.) : 50mA
    Dimension : 160 x 58 x 39 mm
    Battery : 9V
    Weight : 151 gms (including battery)
    Accesories : Carrying Case, 9V Battery, Reflective Tape & Instruction Manual

Click On Image For Bigger View

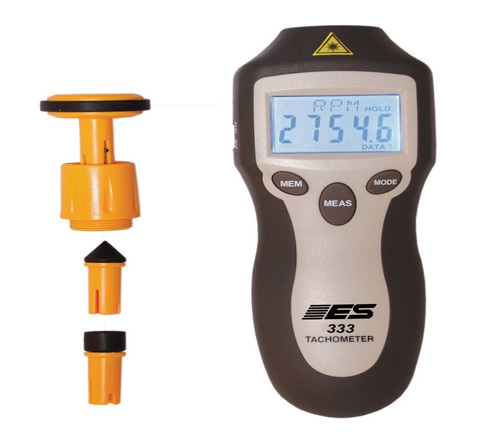

ES 333

Features

  • Dual function Laser Photo & Contact tachometer with 12 different measurement types.
  • Laser method allows for longer detection distance, up to 6 feet away.
  • Contact function adds distance and frequency measuring to the unit's capability.
  • Professional Quality - Shock Absorbing Double Molded Housing
  • Uses include: diesel engines, generators, compressors, industrial engines & equipment, fans, gears and more.

  • Technical Data
    Display : 5 digit LCD w/Backlighting (Continuous Backlit Display)
    Test Range : 2 - 99,999 RPM
    Accuracy : ± 0.05% + 1 digit
    Range Select : Auto Ranging
    Detection Range : 50 mm to 500mm
    Time Base : Quartz Crystal
    Sampling Time : 0.5 seconds
    Resolution : 0.1 RPM (0 to 999 RPM)
    1 RPM (over 1000 RPM)
    Memory (Min/Max/Avg) : 10 records
    Power Comsumption ( approx.) : 45mA
    Dimension : 160 x 60 x 37 mm
    Battery : 9V
    Weight : 190 gms
    Accesories : Carrying Case, 9V Battery, Reflective Tape & Instruction Manual

Click On Image For Bigger View
