Antimu Bearing Maintenance Tools

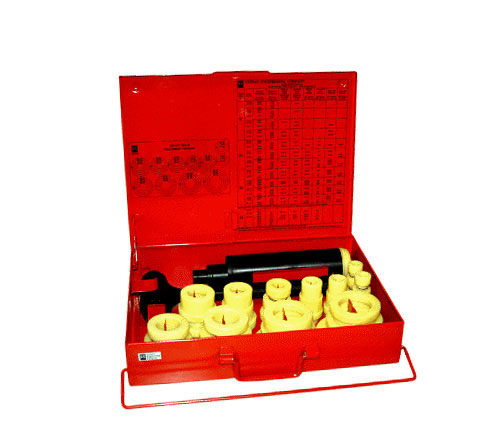

Bearing Fitting Tool Kit Model AM 100 Mark III

Features

A vital Tool Kit for Fast, Safe & Accurate Mounting of Bearings

  • The sleeve impact surfaces and rings are made of Super tough, light weight, impact resistant, ultra high molecular weight (UHMW-Pe) polyethylene material.
  • Each sleeve can accommodate 200 mm (8") projecting shaft length.
  • The mass including,case weighs about 6 kgs. inclusive of a special mallet.
  • The entire tool is packaged in a special carrying case.

Advantages

  • Extremely light kit makes it very portable and convenient to handle.
  • Allows one to mount 200 different sizes of bearings and other components.
  • Ensures ready availability of components for mounting the Bearings when required.
  • Even distribution of mounting force ensures accurate alignment and damage free mounting.
  • No chance of dust or dirt being injected in the Bearing.
  • Technical Data
    • Consists of 3 Aluminium Alloy sleeves and 33 impact rings.
    • Allows one to mount Bearings and other components between a bore diameter of 10 mm to 50mm with precision & accuracy.

Click On Image For Bigger View

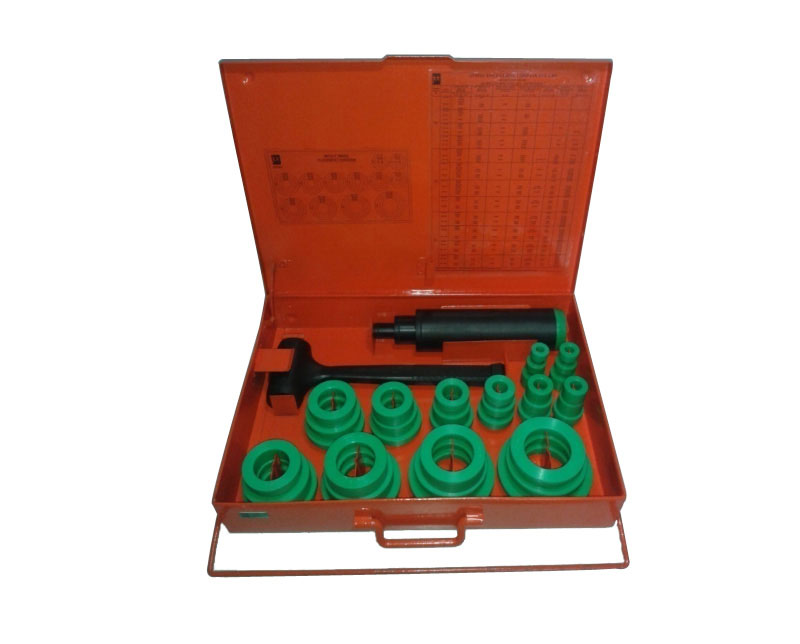

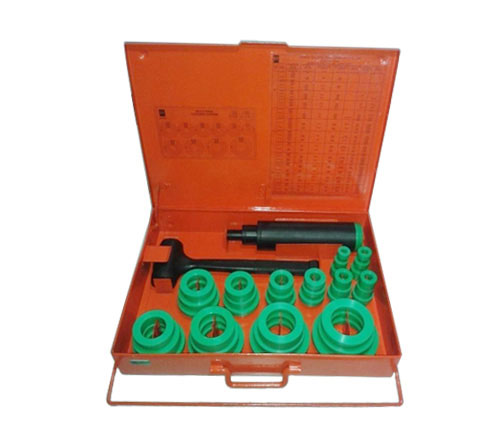

Bearing Fitting Tool Kit Model AM 100 Mark IV

Advantages

  • Ensures ready availability of components for mounting the Bearings when required.
  • Even distribution of mounting force ensures accurate alignment and damage free mounting.
  • No chance of dust or dirt being injected in the Bearing.
  • A compact, light weight kit ensures easy damage free Bearing mounting.



  • Technical Data
    • Consists of 3 Aluminium Alloy sleeves and 36 impact rings.
    • Allows one to mount Bearings and other components between a bore diameter of 10 mm to 55mm with precision & accuracy.

Click On Image For Bigger View

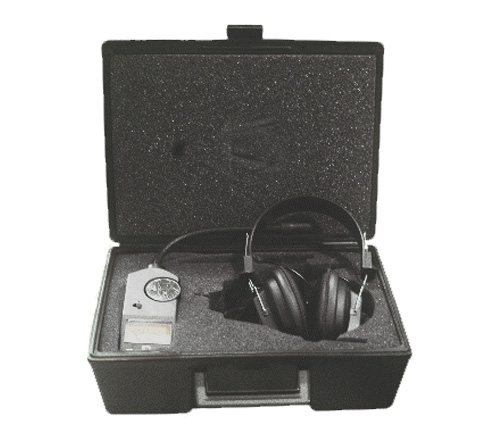

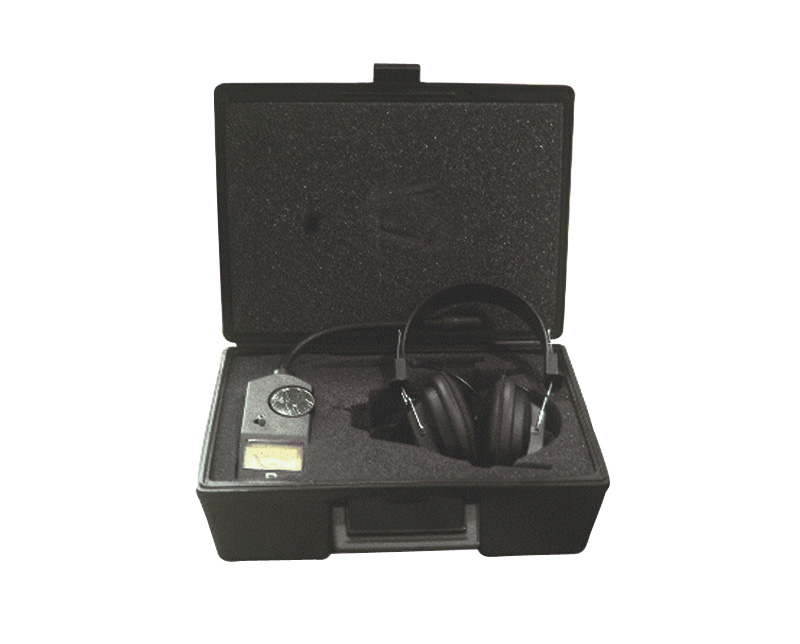

Industrial Stethoscope Model AM 200 Mark I

Features

A quick health monitor for your Bearings & other equipment

  • Comes complete with its main unit, Head phone set, A flexible probe, Battery set in a special carrying case.
  • This is a new generation unit with ultra sensitive microphone and amplifier.
  • Incorporates a db meter, monitor, with 7 levels of sound control setting from 60 db to 120 db.
  • It also has a special adjustable High / Low volume control.

Advantages

  • This is an advanced electronic stethoscope, providing full range of sounds needed in all industrial applications.
  • It senses the faintest vibrations and identifies the source of noise and the location of the defective part.
  • 7 sound level control settings enables the operator to select the correct frequency from 60 db to 120 db and offering clarity and versatility of sounds hitherto unmatched for.
  • This unique product is used to detect bad bearings, bushings, chipped gear teeth, exhaust leaks, wind and water leaks etc.
  • Technical Data
    Listening Tool
    Control Level:7 sound level
    Noise Range: 60 db to 120 db
    Display: Needle pointer
    Flexible Shaft
    Hi-Low Volume Control
    Battery: 9V (6F22M)

Click On Image For Bigger View

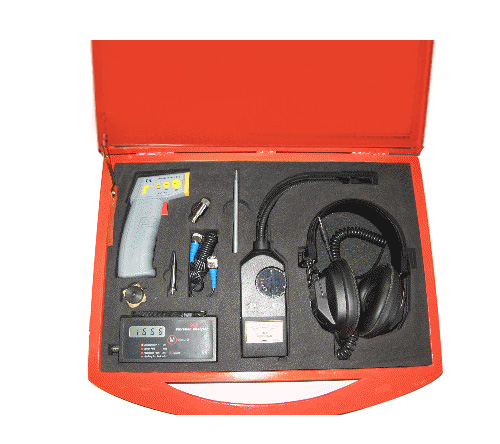

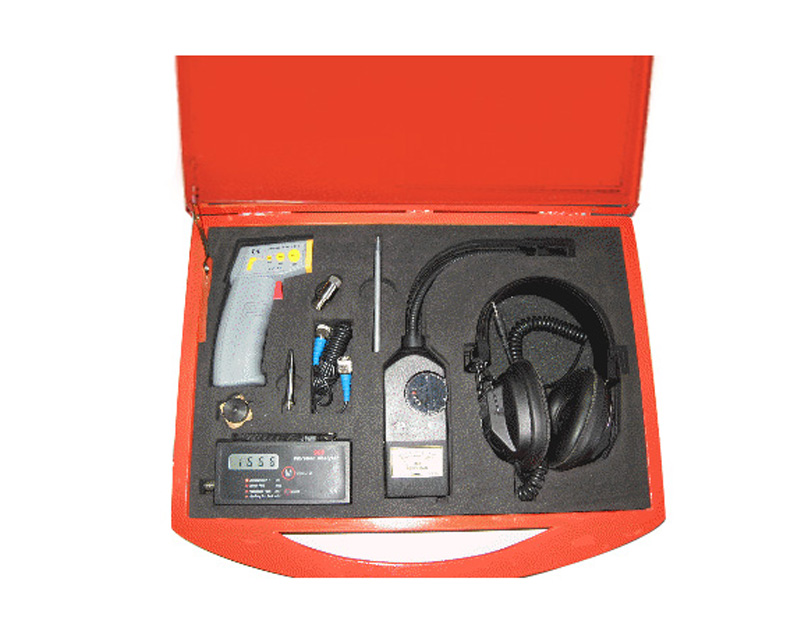

Bearing Monitoring Tool Model AM 800

Features

  • A Powerful KIT for detection of Bearings and Machine defects with MULTI-PARAMETERS condition Monitoring.
  • All appliances are supplied, inclusive of batteries in a specially designed carrying case, making it very convenient to handle.
  • A vital Tool Kit which is a MUST in all industrial plants.
  • Makes condition monitoring a very simple task in Production, Maintenance, Quality control and other departments of the Organisation.
  • Reduces unexpected downtime
  • Technical Data
    Vibration Meter Thermometer Listening Tool
    Displacement : .001-1.999mm -20 to 500 degree C 7 sound level Control
    Velocity : .1-199.9mm/s Distance to Spot 8:1 60 db to 120 db
    Acceleration : .1-199.9m/s (sq) Response Time 500m sec db meter, Monitor
    Accuracy ± 5% Accuracy ± 2 °C Flexible Shaft
    Magnetic mount available Emissivity .98 Hi-Low Volume Control
    3 1/2 LCD display Laser Targeting Battery Check Position

Click On Image For Bigger View
