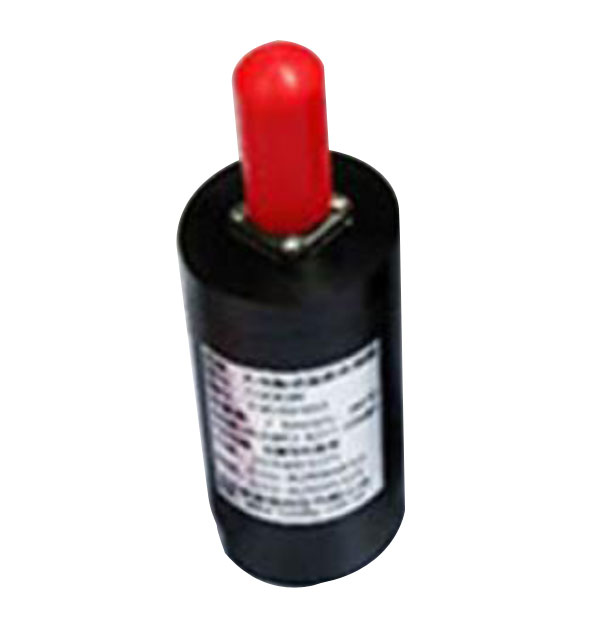

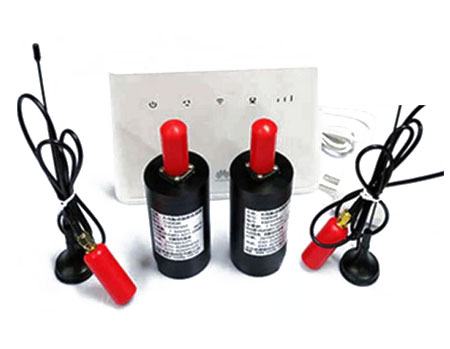

S906w AI-based Wireless online vibration monitoring and diagnostic System

Why to consider S906w ?

  • Vibration Sensors only requires Wi-Fi Network
  • Completely wireless system
  • Provides 24 x 7 continuous monitoring of machine vibration & temperature
  • AI-based cloud server provides real time alarm & diagnosis on E-mail & SMS.
  • Battery Powered (duration in years, depends data upload intervals)
  • Resettable data upload intervals as per user requirement
  • Wireless sensor measures “7 vibration parameters & temperature”
  • Ideal system for detecting bearing defects & diagnosis of rotational machine faults.
  • Diagnostic results are presented in clear language, no need of detailed vibration analysis
  • User friendly
  • User can set Reference limit, Warning limit and alarming limits.
  • Color coded indication is provided as per limit in Green, Yellow and Red.
  • Size: 100 x 44 (mm); Weight: 220g; Working Temperature: -20°C-80°C

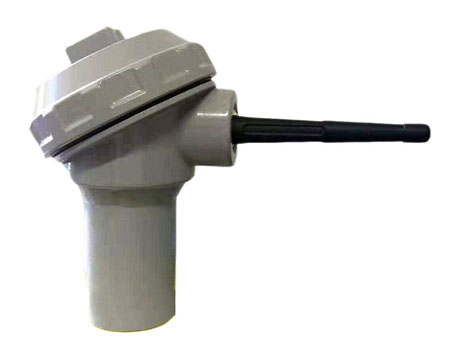

Optional: Water proof & Explosion proof versions of Sensors are also available.





Technical Specification

    Measurement Parameter & Range (As per user requirement)

  • Acceleration equivalent Peak Value : 0.1 to 100 m/s2
  • Velocity true RMS : 0.1 to 30 mm/s
  • Displacement equivalent Peak-Peak : 1 to 1000 μm
  • Enveloped Acceleration Averaged Peak : 0.1 to 50 m/s2
  • Temperature(base) : -20 to 80 Deg C

Battery Voltage, Spectrum peak list, Kurtosis index & Askew index are uploaded to the server along with above mentioned parameters.


Specification

    Frequency Range

  • Acceleration : 10 to 1000Hz, + 5%
  • Velocity : 10 to 1000Hz, + 5%
  • Displacement : 10 Hz to 500Hz, + 10%
  • Envelope :10Hz to 2kHz demodulated from 3kHz~10kHz, +10%
  • Linear Accuracy at 80Hz : + 5%
  • Operation Environment : Temperature: -20 to 80 Deg C
  • Relative humidity : <85%
  • WIFI : IEEE 802.11b/g/n, TCP/IP
  • Dimensions : 110 x 44 (mm)
  • Weight : 220g (standard type, including battery)

Integrated completely wireless Li/SOCl2 Battery, ER14505Mx2 for standard type / ER26500M for waterproof type
