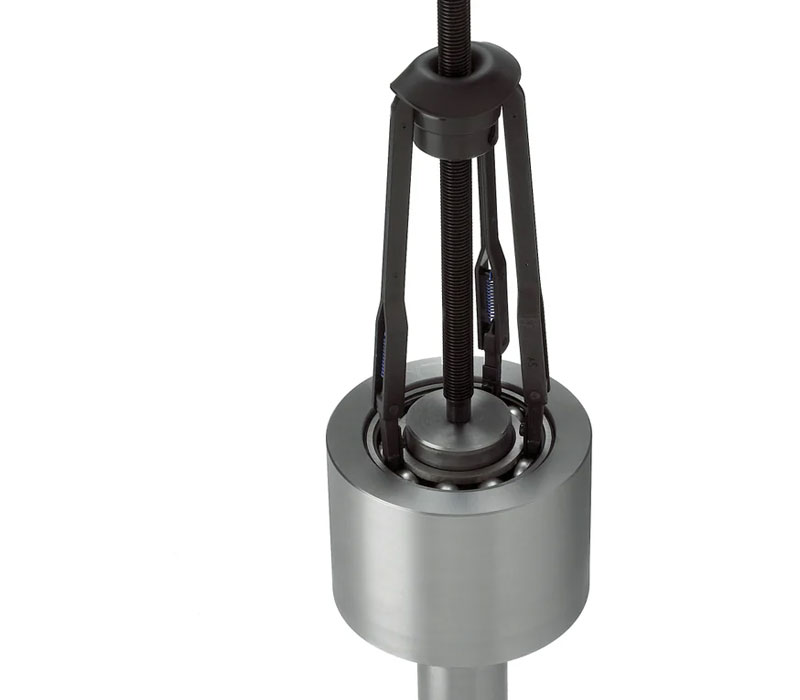

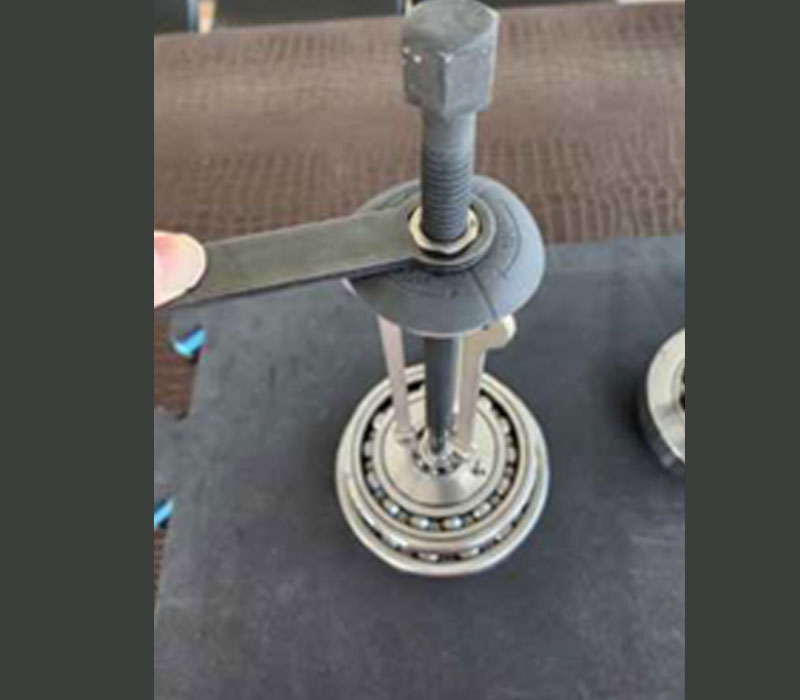

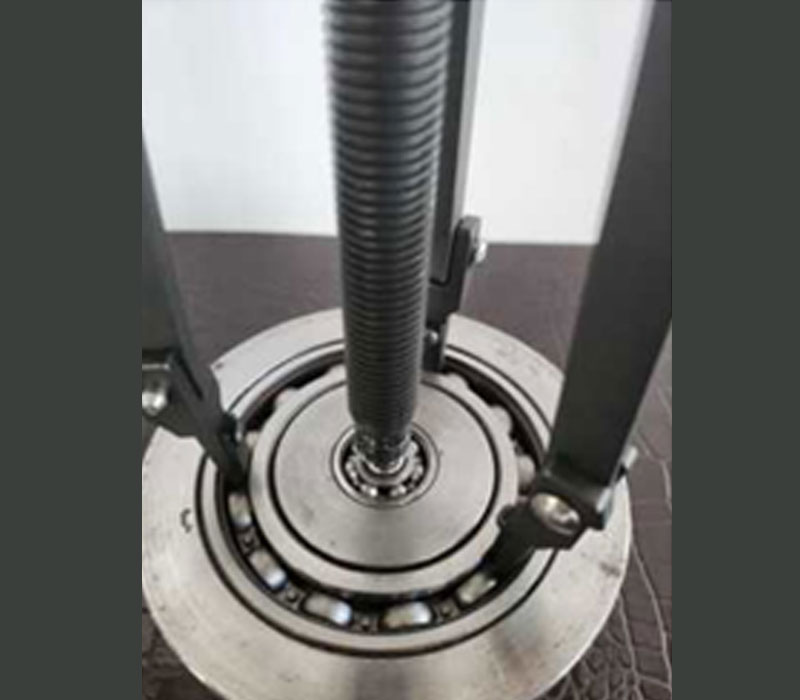

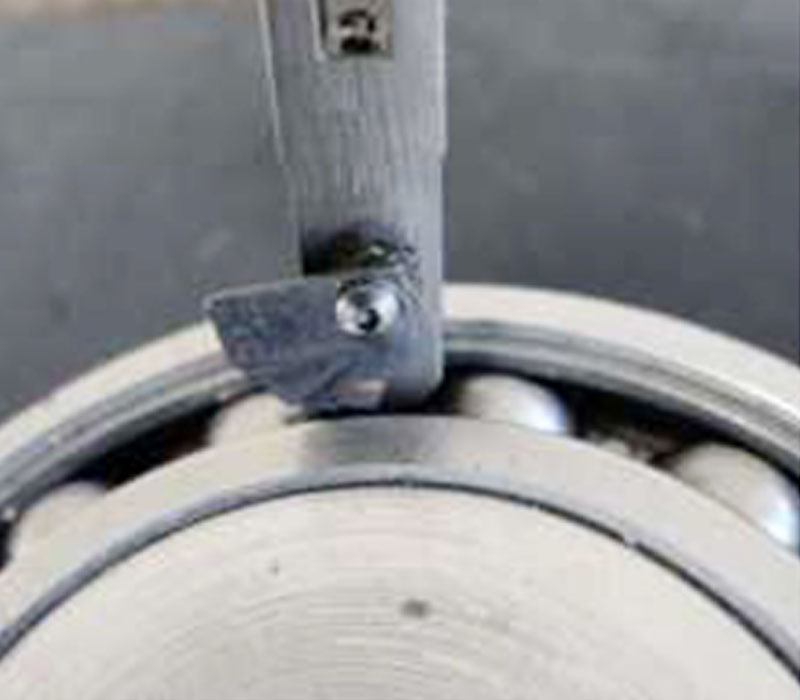

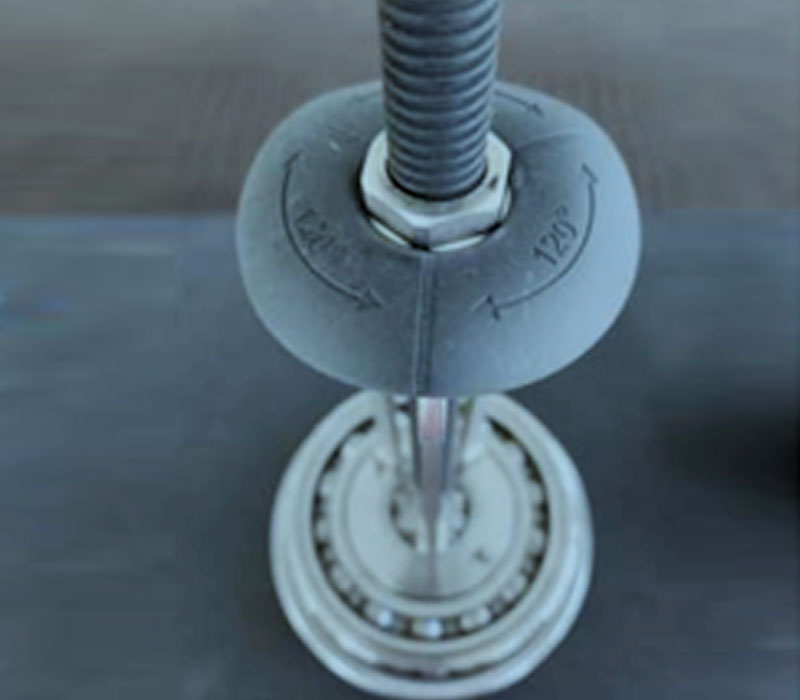

The puller is the most convenient tool to extract deep groove ball bearings. It can also be used for extraction of sealed bearings, after the seal has been removed. The puller consists of 2 sets of 3 arms each, with their corresponding spindles along with 6 sets of arm tips for removal of more than 70 sizes of bearings. Each set of arm tips, consists of 3 tips, enabling even distribution of extraction force. A handle completes the set, which is packed in a very convenient carrying case.
| Series | H1 | H2 | H3 | H4 | H5 | H6 |
|---|---|---|---|---|---|---|
| 60.. | 6000 | 6004 | 6007 | 6011 | 6014 | 6018 |
| 6001 | 6005 | 6008 | 6012 | 6015 | 6019 | |
| 6002 | 6006 | 6009 | 6013 | 6016 | 6020 | |
| 6003 | 6010 | 6017 | ||||
| 62.. | 6200 | 6201 | 6204 | 6206 | 6207 | 6212 |
| 6202 | 6205 | 62/28 | 6208 | 6213 | ||
| 6203 | 62/22 | 6209 | 6214 | |||
| 6210 | 6215 | |||||
| 6211 | 6216 | |||||
| 6217 | ||||||
| 6218 | ||||||
| 63.. | 6300 | 6303 | 6305 | 6308 | ||
| 6301 | 6304 | 63/28 | 6309 | |||
| 6302 | 63/22 | 6306 | 6310 | |||
| 6307 | 6311 | |||||
| 6312 | ||||||
| 6313 | ||||||
| 64.. | 6403 | 6403 | ||||
| 6404 | ||||||
| 6405 | ||||||
| 6406 | ||||||
| 6407 | ||||||
| 6408 | ||||||
| 6409 | ||||||
| 6410 | ||||||
| 160.. | 16002 | 16011 | ||||
| 16003 | ||||||
| 161.. | 16100 | |||||
| 16101 |
