S-Force Hydraulic Cylinders & Pumps

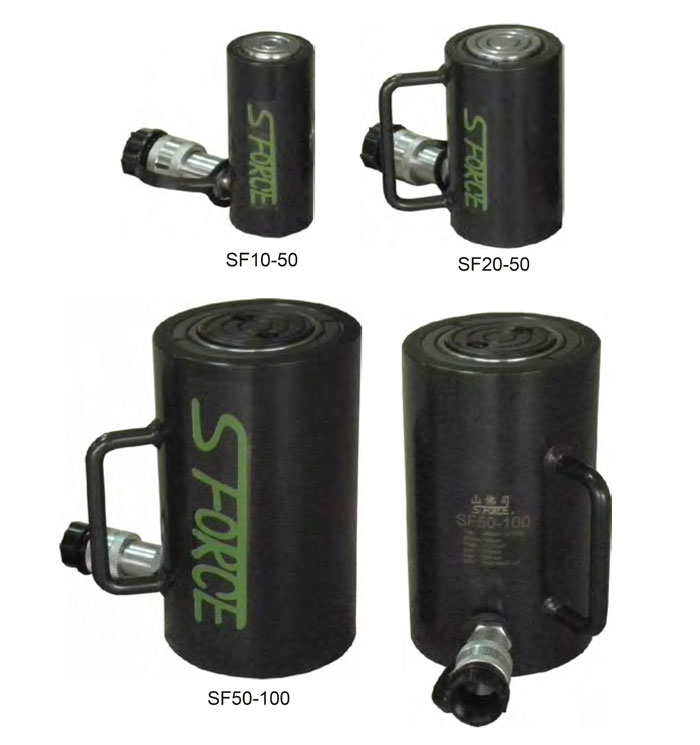

SF Single-Acting, General Cylinders

Features

  • Designed for use in all positions.
  • Hard chrome plated plunger and inner of barrel resists wear and corrosion,
  • it also be more closed and extending cylinder life.
  • Maximum sized springs speed piston return and increase spring life.
  • Plunger wiper reduces contaminant.
  • Stop ring for piston blow-out protection.
  • Powder coat finish for increased corrosion resistance and antirust.
  • SFQB-3/8UF coupler and dust cap are included on all models..
For technical specification please refer our product catalogue page No. 03 & 04

Click On Image For Bigger View

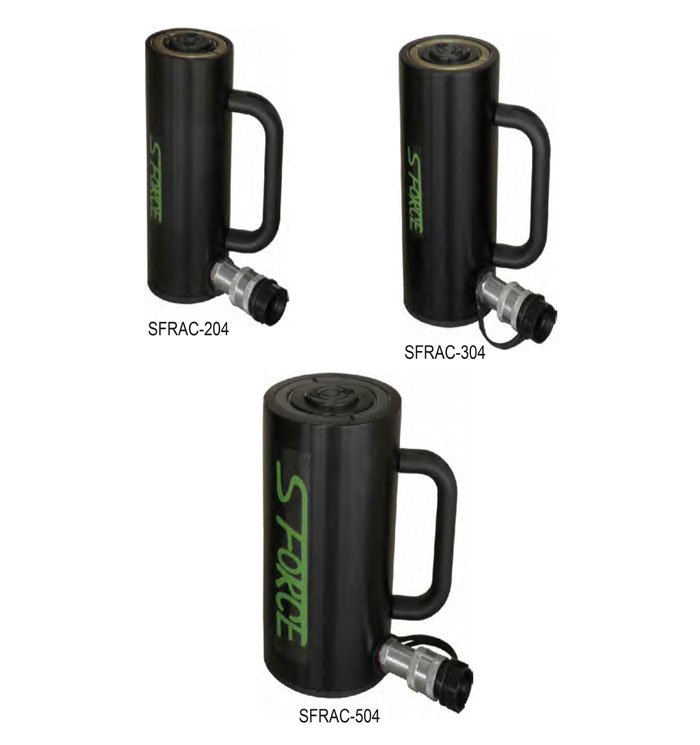

SFRAC Single-Acting, Aluminum Cylinders

Features

  • Lightweight, aluminum design for maximum portability.
  • 7075-T6 Aluminum alloy components for maximum strength and minimum weight.
  • Steel base plate and saddle for protection against load-induced damage.
  • Anodizing treatment plunger, surfaces and inner of barrel resists damage and extends cylinder life.
  • Maximum sized springs speed piston return and increase spring life.
  • Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-load.
  • Stop ring for piston blow-out protection.
  • SFQB-3/8UF coupler and dust cap are included on all models.
For technical specification please refer our product catalogue page No. 05 & 06

Click On Image For Bigger View

SF Single-Acting, General Cylinders

Features

  • Designed for use in all positions.
  • Hard chrome plated plunger and inner of barrel resists wear and corrosion,
  • it also be more closed and extending cylinder life.
  • Maximum sized springs speed piston return and increase spring life.
  • Plunger wiper reduces contaminant.
  • Stop ring for piston blow-out protection.
  • Powder coat finish for increased corrosion resistance and antirust.

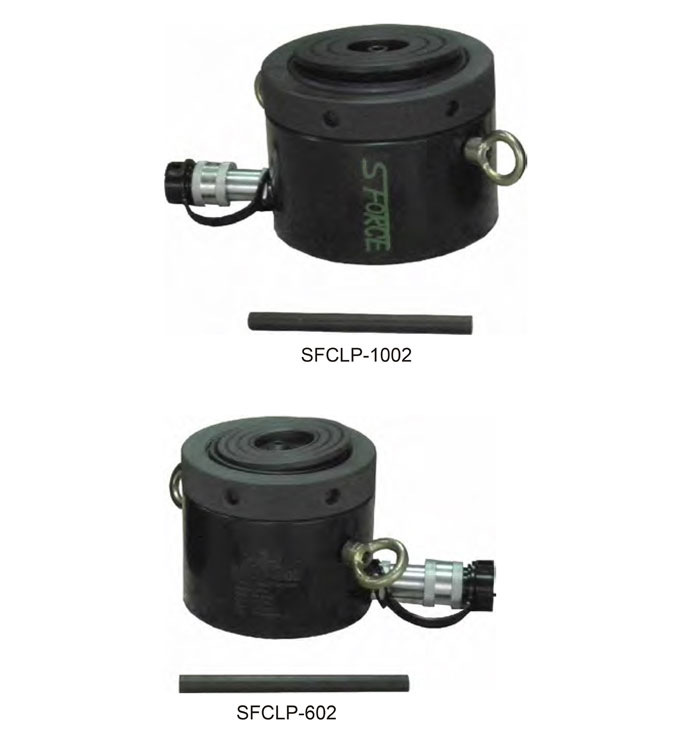

  • SFQB-3/8UF coupler and dust cap are included on all models.SFCLP Single-Acting, Pancake Lock Nut Cylinders
  • Flat design for use in confined area.
  • Special coating on piston and stop ring improves corrosion and abrasion resistance.
  • Safety lock nut for mechanical load holding.
  • Integral tilt saddle standard improves performance under side load.
  • Overflow port functions as a stroke limiter.
  • Single-acting load return.
  • Powder coat finish for increased corrosion resistance and antirust.
  • SFQB-3/8UF coupler and dust cap are included on all models.
For technical specification please refer our product catalogue page No. 07 & 08

Click On Image For Bigger View

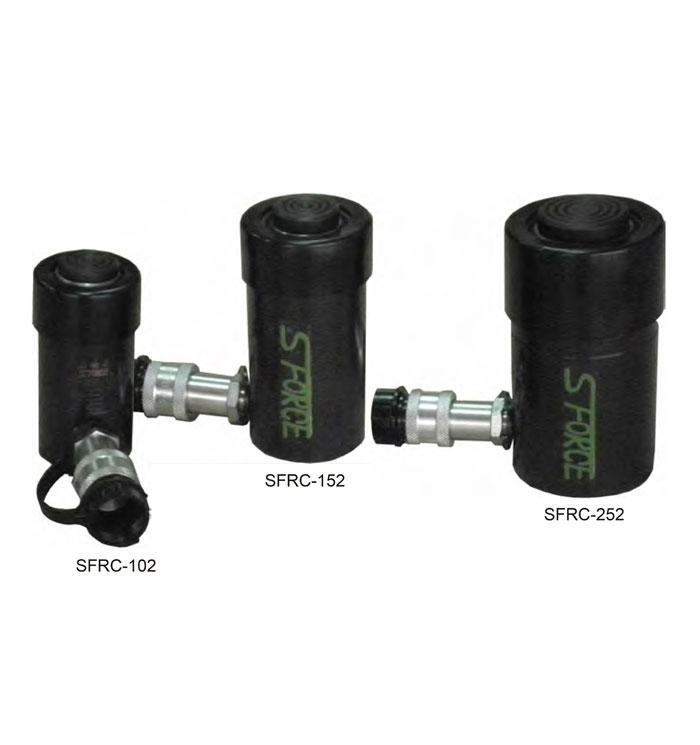

SFRC Single-Acting, Collar threads Cylinders

Features

  • Collar threads, plunger threads and base mounting holes enable easy
  • fixturing (see page 12)
  • Hard chrome plated plunger and inner of barrel resists wear and corrosion.
  • Plunger wiper reduces contaminant.
  • Stop ring for piston blow-out protection.
  • Powder coat finish for increased corrosion resistance and antirust.
  • All collar threads have a cap for protection.
  • Maximum sized springs speed piston return and increase spring life.
  • SFQB-3/8UF coupler and dust cap are included on all models.
For technical specification please refer our product catalogue page No. 09, 10, 11 & 12

Click On Image For Bigger View

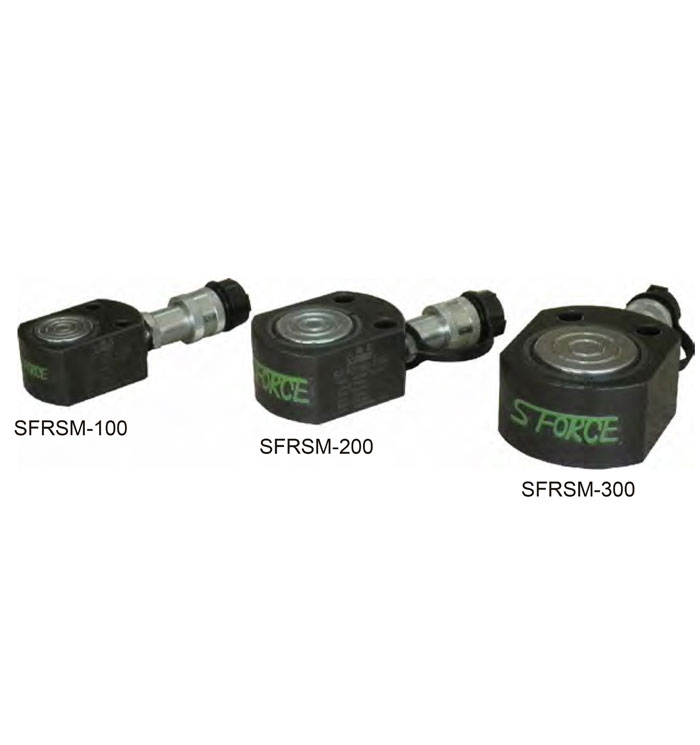

SFRSM Single-Acting, Low Height, Flat Cylinders

Features

  • Compact and flat design for use where in a narrow space.
  • Mounting holes permit easy fixturing.
  • Grooved plunger ends require no saddle.
  • Hard chrome plated plunger and inner of barrel resists wear and corrosion.
  • Maximum sized springs speed piston return and increase spring life.
  • Plunger wiper reduces contaminant.
  • Stop ring for piston blow-out protection.
  • Powder coat finish for increased corrosion resistance and antirust.
  • SFQB-3/8UF coupler and dust cap are included on all models.
For technical specification please refer our product catalogue page No. 13

Click On Image For Bigger View

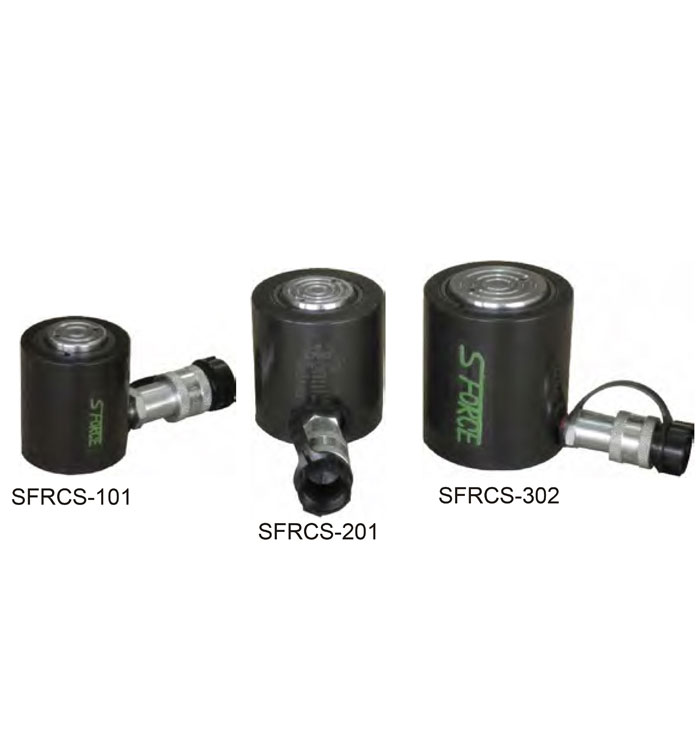

SFRCS Single-Acting, Low Height Cylinders

Features

  • Lightweight, low profile design for use in confined spaces ,but stroke higher than SFRSM.
  • Grooved plunger end with threaded holes for mounting tilt saddles.
  • Hard chrome plated plunger and inner of barrel resists wear and corrosion.
  • Maximum sized springs speed piston return and increase spring life.
  • Plunger wiper reduces contaminant.
  • Stop ring for piston blow-out protection.
  • Powder coat finish for increased corrosion resistance and antirust.
  • SFQB-3/8UF coupler and dust cap are included on all models.
For technical specification please refer our product catalogue page No. 14

Click On Image For Bigger View

SFRCH Single-Acting, Hollow Plunger Cylinders

Features

  • Hollow plunger design allows for both pull and push forces.
  • Low profile and longer strokes fit in the tightest space.
  • Withstands full "dead-end" loads.
  • Collar threads for easy fixturing and all collar threads have a cap for protection.
  • Special center tube protect plunger and inner of cylinder increases product life.
  • Hard chrome plated plunger and inner of barrel resists wear and corrosion. Spring returing.
  • Wiper rings protect the piston, bore & tube from contamination.
  • Stop ring for piston blow-out protection.
  • Powder coat finish for increased corrosion resistance and antirust.
  • SFQB-3/8UF coupler and dust cap are included on all models.
For technical specification please refer our product catalogue page No. 15 & 16

Click On Image For Bigger View

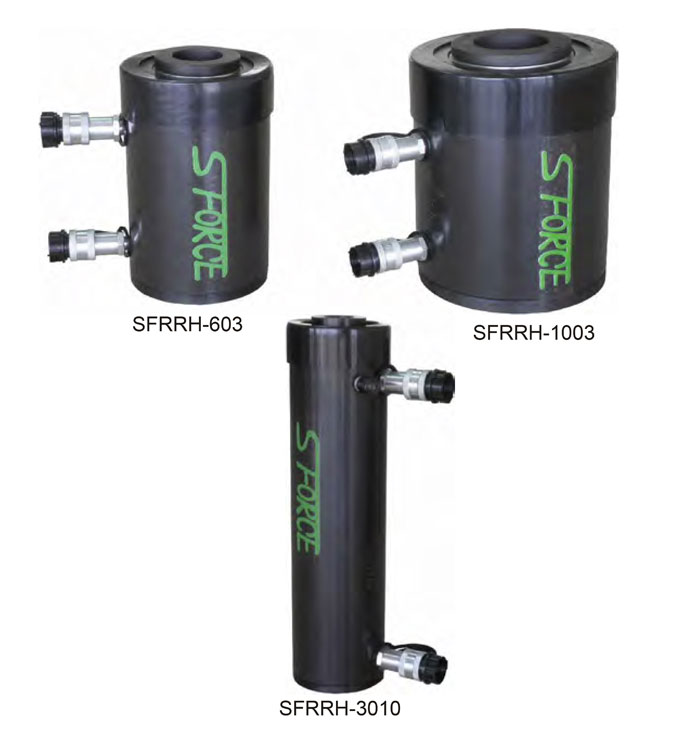

SFRRH Double-Acting, Hollow Plunger Cylinders

Features

  • Hollow plunger design allows for both pull and push forces.
  • Relief valves protect against over pressurizing.
  • Withstands full "dead-end" loads.
  • Collar threads for easy fixturing(Except SFRRH-1001 & SFRRH-1508) and all collar threads have a cap for protection.
  • Special center tube protect plunger and inner of cylinder increases product life.
  • Hard chrome plated plunger resists wear and corrosion.
  • Wiper rings protect the piston,bore & tube from contamination.
  • Stop ring for piston blow-out protection.
  • Powder coat finish for increased corrosion resistance and antirust.
  • SFQB-3/8UF coupler and dust cap are included on all models.
For technical specification please refer our product catalogue page No. 17 & 18

Click On Image For Bigger View

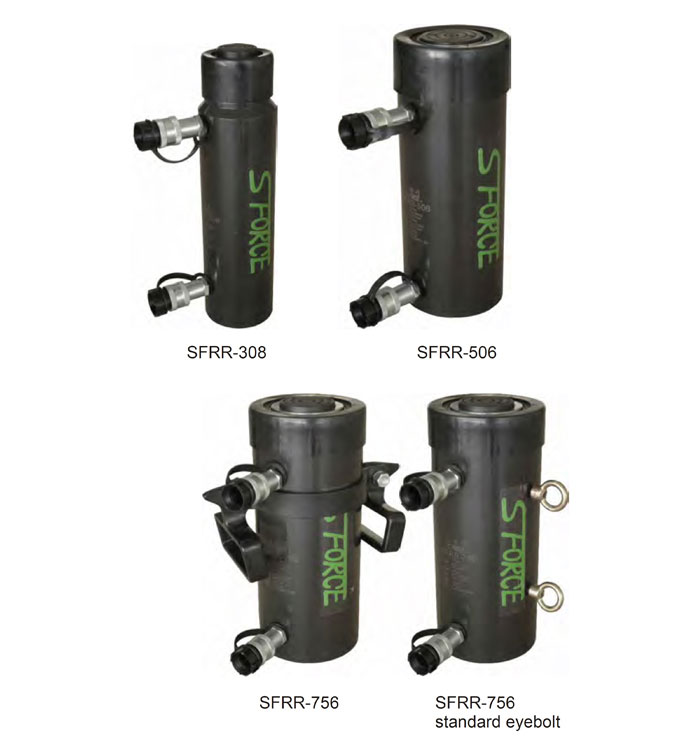

SFRR Double-Acting Cylinders

Features

  • Double-acting design allows for both pull and push forces
  • Relief valves protect against over pressurizing.
  • Collar threads, plunger threads and base mounting holes for easy fixturing.
  • Hard chrome plated plunger resists wear and corrosion.
  • Wiper rings protect the piston and bore from contamination.
  • Stop ring for piston blow-out protection.
  • Powder coat finish for increased corrosion resistance and antirust.
  • SFQB-3/8UF coupler and dust cap are included on all models.
  • SFRR series cylinders are perfect for bridge lifting, building reconstruction, shipyard,utility and mining equipment maintenance.
  • As need power and precise positioning of heavy loads, SFRR series are the best solution.
For technical specification please refer our product catalogue page No. 19, 20, 21 & 22

Click On Image For Bigger View

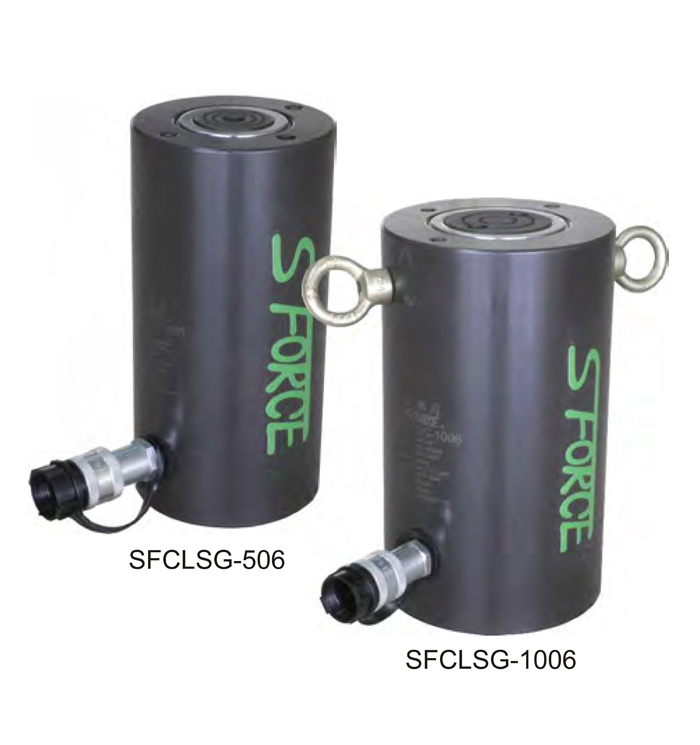

SFCLSG Single-Acting, High Tonnage Cylinders

Features

  • Base mounting holes standard on all models.
  • Single-acting, load return
  • Hard chrome plated plunger and inner of barrel resists wear and corrosion.
  • Plunger wiper reduces contamination, extending cylinder life.
  • Integral stop ring provides piston blow-out protection
  • Powder coat finish for increased corrosion resistance and antirust.
  • SFQB-3/8UF coupler and dust cap are included on all models.
For technical specification please refer our product catalogue page No. 23, 24, 25 & 26

Click On Image For Bigger View

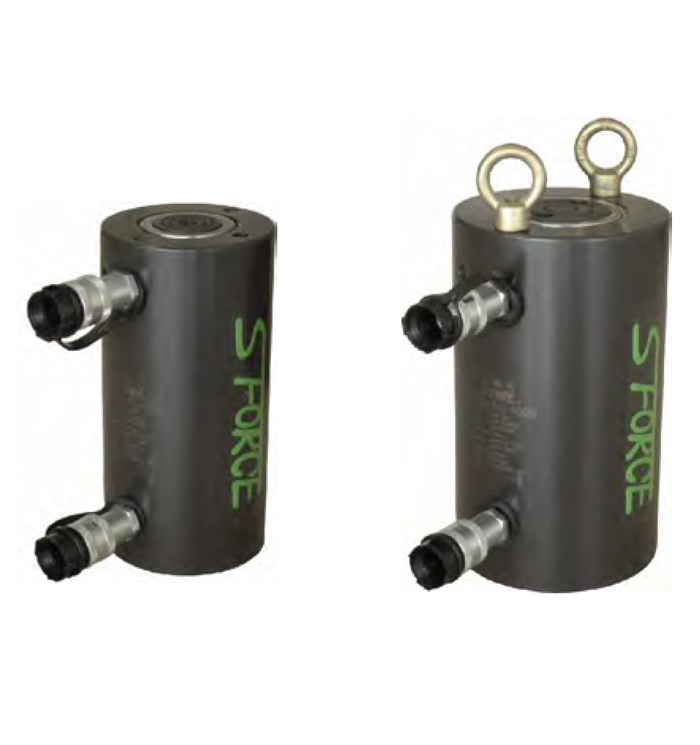

SFCLRG Double-Acting, High Tonnage Cylinders

Features

  • Base mounting holes standard on all models.
  • Double-acting, for push and pull.
  • Hard chrome plated plunger resists wear and corrosion.
  • Safety valve in retract side of cylinder helps to prevent damage in case of accidental over-pressurization.
  • Interchangeable, hardened grooved saddles are standard.
  • Plunger wiper reduces contamination, extending cylinder life.
  • Powder coat finish for increased corrosion resistance and antirust.
  • SFQB-3/8UF coupler and dust cap are included on all models.
For technical specification please refer our product catalogue page No. 27, 28, 29 & 30

Click On Image For Bigger View

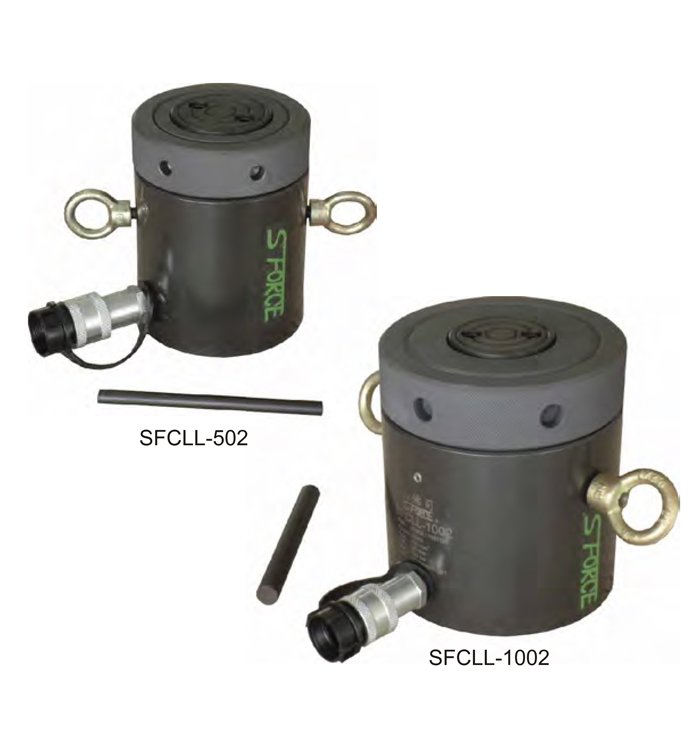

SFCLL Single-Acting, High Tonnage, Lock Nut Cylinders

Features

  • Hard chrome plated inner of barrel resistes wear and corrosion.
  • Safety lock nut for mechanical load holding.
  • Interchangeable, hardened grooved saddles are standard.
  • Single-acting load return.
  • Overflow port functions as a stroke limiter.
  • Special coating on piston and lock nut improves corrosion and abrasion resistance.
  • Powder coat finish for increased corrosion resistance and antirust.
  • SFQB-3/8UF coupler and dust cap are included on all models.
For technical specification please refer our product catalogue page No. 31, 32, 33 & 34

Click On Image For Bigger View

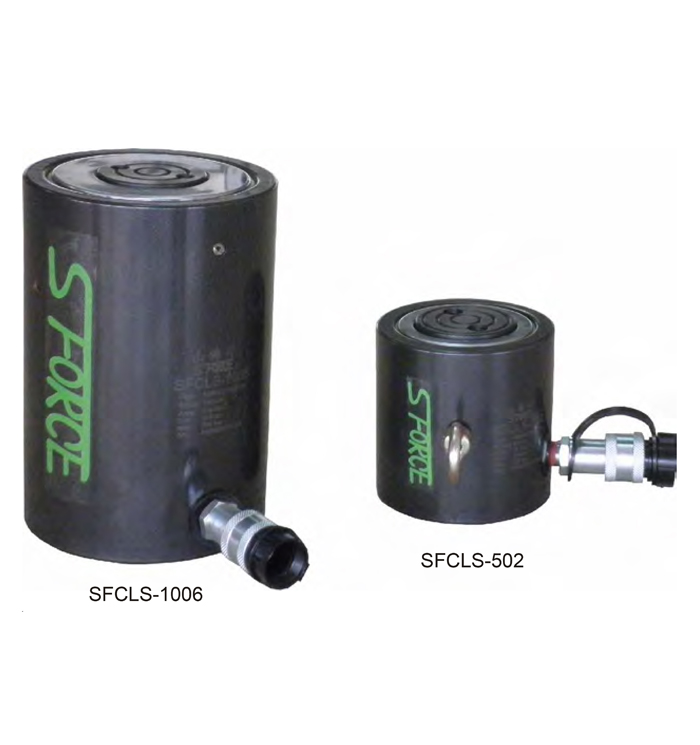

SFCLS Single-Acting, High Tonnage Cylinder

Features

  • Lowest collapsed height for use in confined spaces.
  • Interchangeable, hardened grooved saddles are standard.
  • Single-acting, load return.
  • Overflow port functions as a stroke limiter.
  • Hard chrome plated plunger resists wear and corrosion.
  • Plunger wiper reduces contamination, extending cylinder life.
  • Powder coat finish for increased corrosion resistance and antirust.
  • SFQB-3/8UF coupler and dust cap are included on all models.
For technical specification please refer our product catalogue page No. 35, 36, 37 & 38

Click On Image For Bigger View

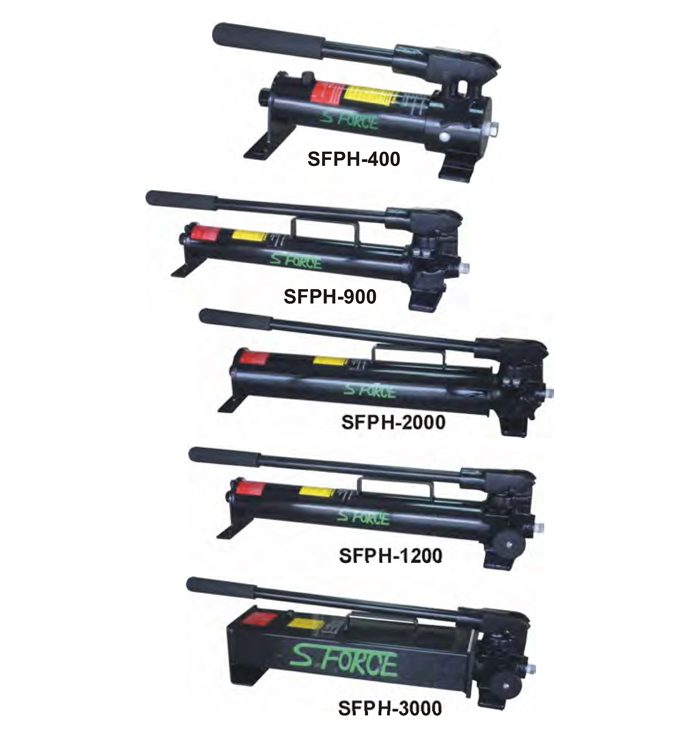

SFPH Steel Hand Pump

Features

  • SFPH Steel Hand Pump
  • Internal pressure relief valve for overload protection.
  • Large oil capacity, suitable for wide application.
  • Two speed auto-switch reduces manpower and increase efficiency.
For technical specification please refer our product catalogue page No. 39

Click On Image For Bigger View
