Induction Heaters


Suretherm Series

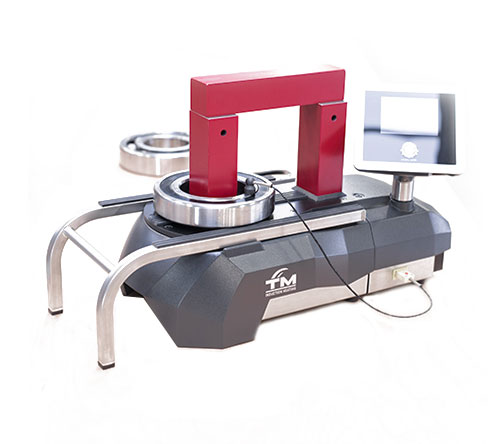

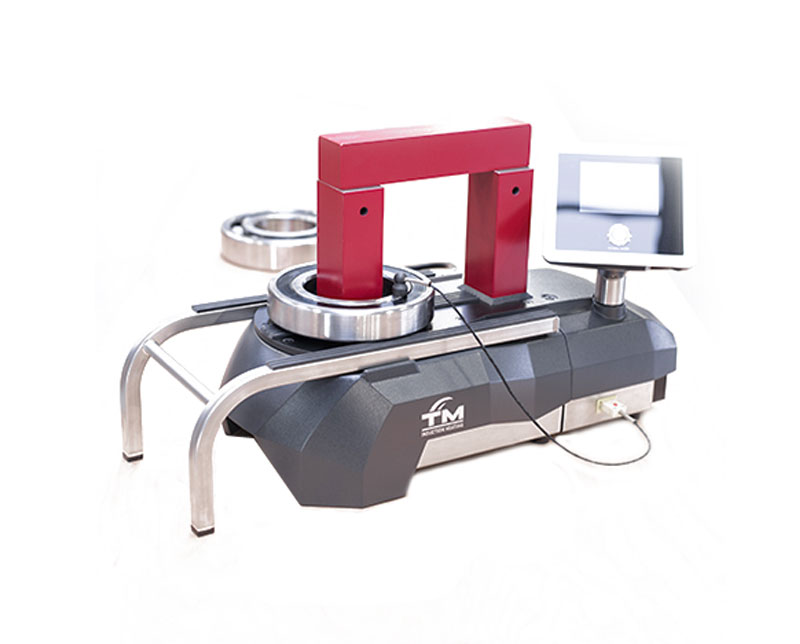

Suretherm 10X



SPECIFICATIONS
Power Rating : 3 kVA
Facility Power : 110 - 230 V / 13 A / 50/60 Hz

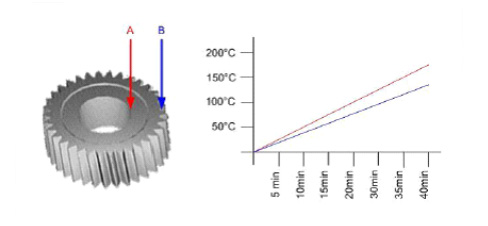

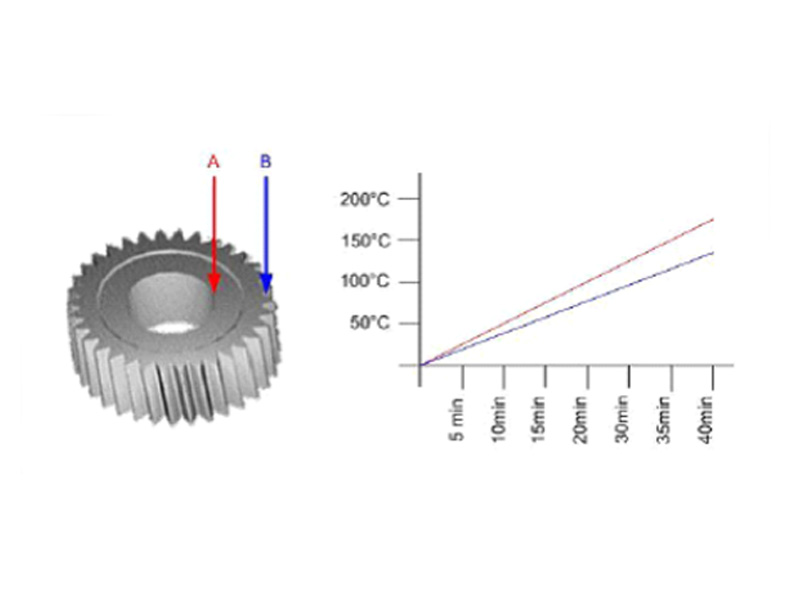

Temperature Control : Single / Dual
Weight : 21 kg / 46.3 lb
Operating Area (WxH) : 120 x 145 mm

4.7 x 5.7 inches
Dimensions (L x B x H) : 450 x 210 x 130 mm

17.7 x 8.3 x 5.1 inches
WORKPIECE
Min. bore diameter : ø 10 mm / ø 0.4 inches
Max. outer diameter : ø 400 mm / ø 15.75 inches
Max. weight : 50 kg / 110 lb

Click On Image For Bigger View

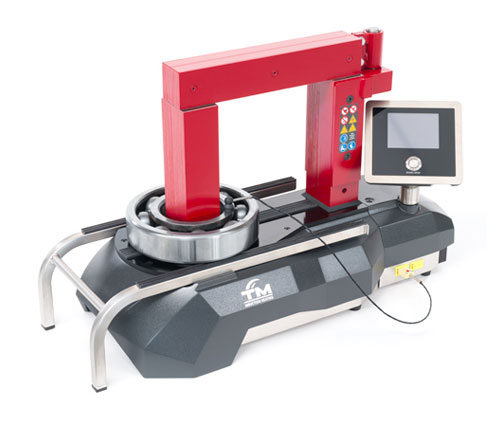

Suretherm 20X


SPECIFICATIONS
Power Rating : 3.7 kVA
Facility Power : 110 - 230 V / 16 A / 50/60 Hz
Temperature Control : Single / Dual
Weight : 40 kg / 88 lb
Operating Area (WxH) : 180 x 185 mm

7.1 x 7.3 inches
Dimensions (L x B x H) : 540 x 275 x 130 mm

21.3 x 10.8 x 5.1 inches
WORKPIECE
Min. bore diameter : ø 15 mm / ø 0.6 inches
Max. outer diameter : ø 500 mm / ø 19.7 inches
Max. weight : 100 kg / 220 lb

Click On Image For Bigger View

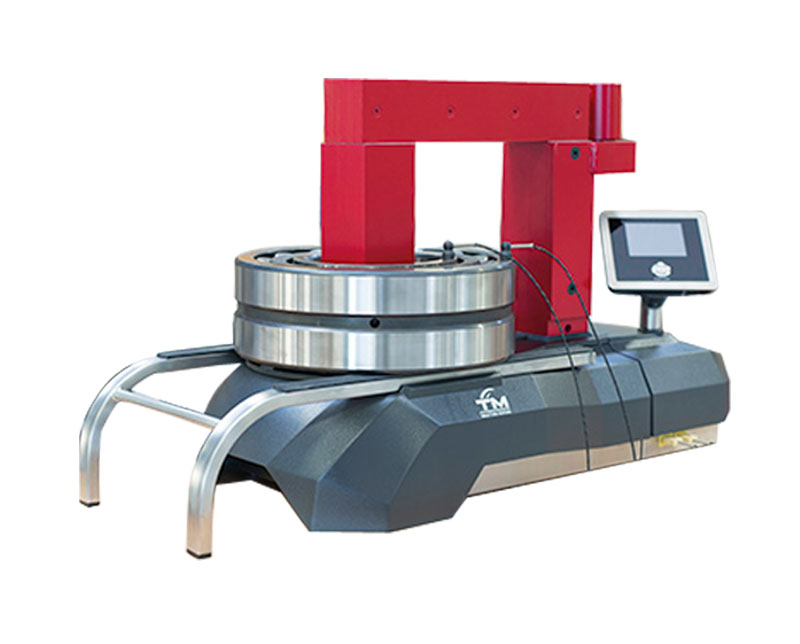

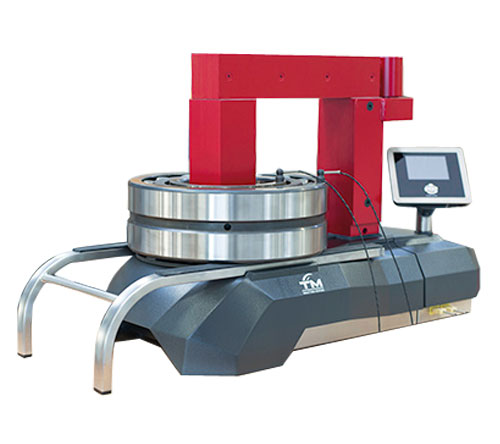

Suretherm 30X


SPECIFICATIONS
Power Rating : 8 kVA
Facility Power : 400 - 575 V / 20 A / 50/60 Hz
Temperature Control : Single / Dual
Weight : 85 kg / 187 lb
Operating Area (WxH) : 210 x 220 mm

8.3 x 8.7 inches
Dimensions (L x B x H) : 695 x 330 x 160 mm

27.4 x 13 x 6.3 inches
WORKPIECE
Min. bore diameter : ø 30 mm / ø 1.2 inches
Max. outer diameter : ø 600 mm / ø 23.6 inches
Max. weight : 200 kg / 440 lb

Click On Image For Bigger View

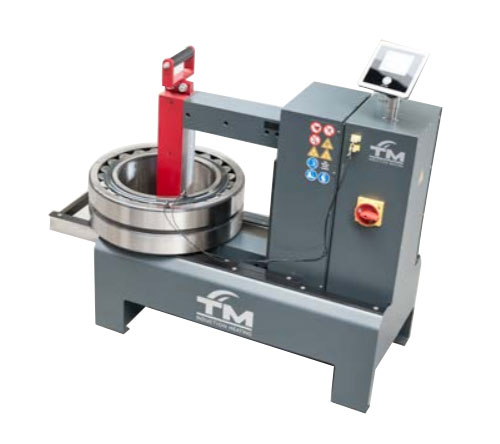

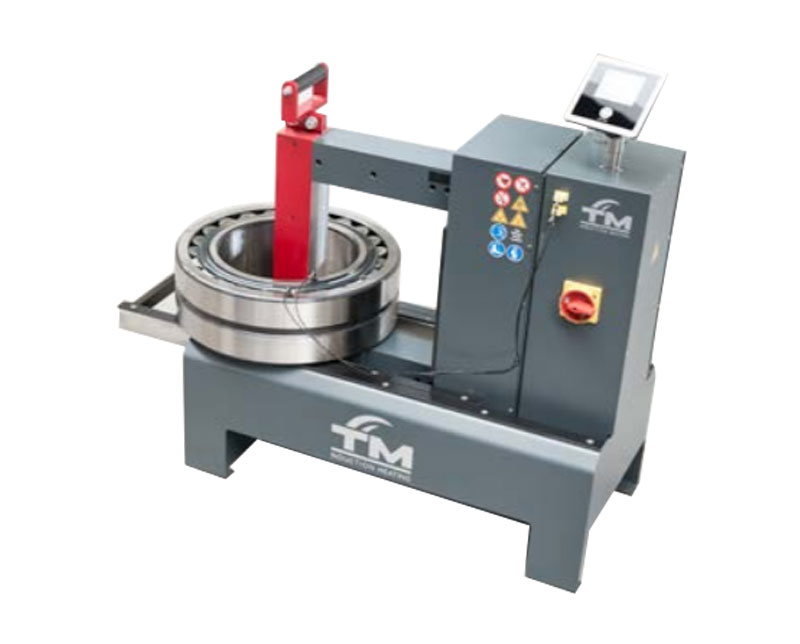

Suretherm pro 1X


SPECIFICATIONS
Power Rating : 12.8 kVA
Facility Power : 400 - 480 - 575 V / 32 A / 50/60 Hz
Temperature Control : Single / Dual
Weight : 157 kg / 346 lb
Operating Area (WxH) : 300 x 330 mm

11.8 x 13 inches
Dimensions (L x B x H) : 850 x 420 x 950 mm

33.5 x 16.5 x 37.4 inches
WORKPIECE
Min. bore diameter : ø 30 mm / ø 1.2 inches
Max. outer diameter : ø 1000 mm / ø 39.4 inches
Max. weight : 400 kg / 880 lb

Click On Image For Bigger View

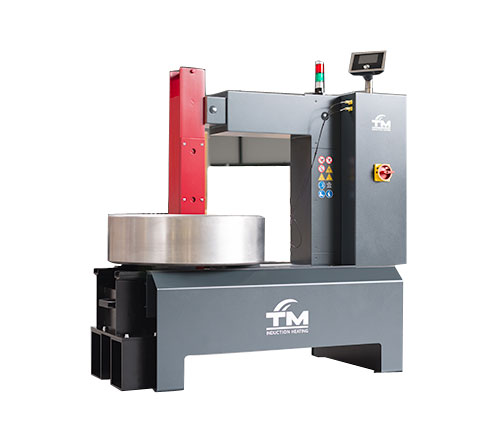

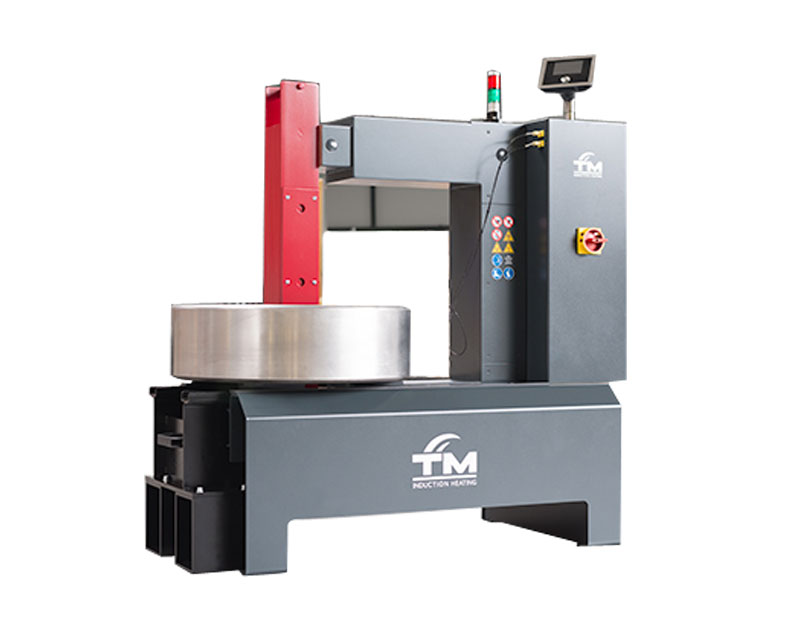

Suretherm pro 3X


Power Rating : 25.2 kVA
Facility Power : 400 - 480 - 575 V / 63 A / 50/60 Hz
Temperature Control : Single / Dual
Weight : 280 kg / 617 lb
Operating Area (WxH) : 430 x 490 mm

16.9 x 19.3 inches
Dimensions (L x B x H) : 1080 x 500 x 1250 mm

42.5 x 19.7 x 49.2 inches
WORKPIECE
Min. bore diameter : ø 45 mm / ø 1.8 inches
Max. outer diameter : ø 1500 mm / ø 59 inches
Max. weight : 800 kg / 1764 lb

Click On Image For Bigger View

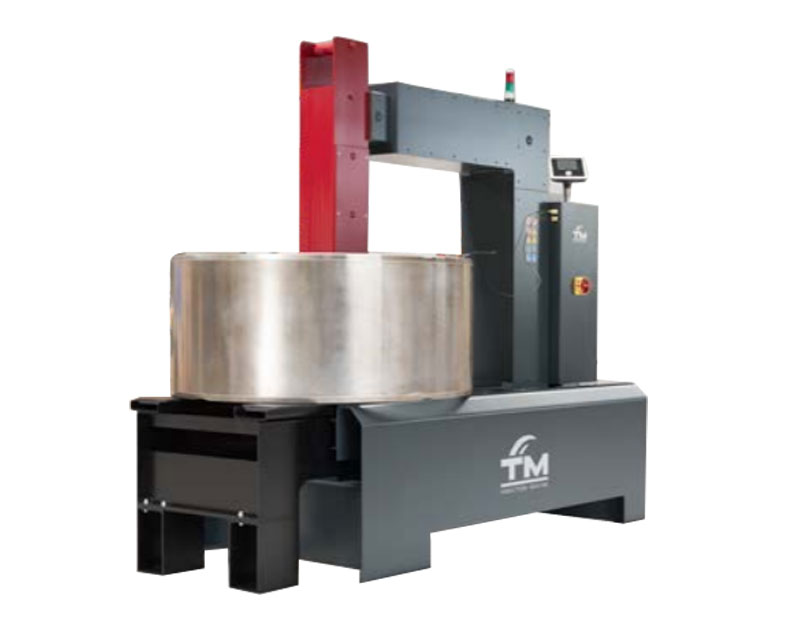

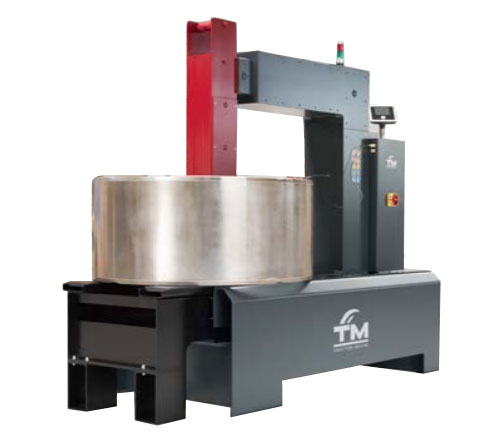

Suretherm pro 6X


Power Rating : 40 kVA
Facility Power : 400 - 480 - 575 V / 100 A / 50/60 Hz
Temperature Control : Single / Dual
Weight : 650 kg / 1433 lb
Operating Area (WxH) : 690 x 700 mm

27.2 x 27.5 inches
Dimensions (L x B x H) : 1500 x 800 x 1600 mm

59 x 31.5 x 63 inches
WORKPIECE
Min. bore diameter : ø 85 mm / ø 3.35 inches
Max. outer diameter : ø 2000 mm / ø 78.75 inches
Max. weight : 1600 kg / 3527 lb

Click On Image For Bigger View
