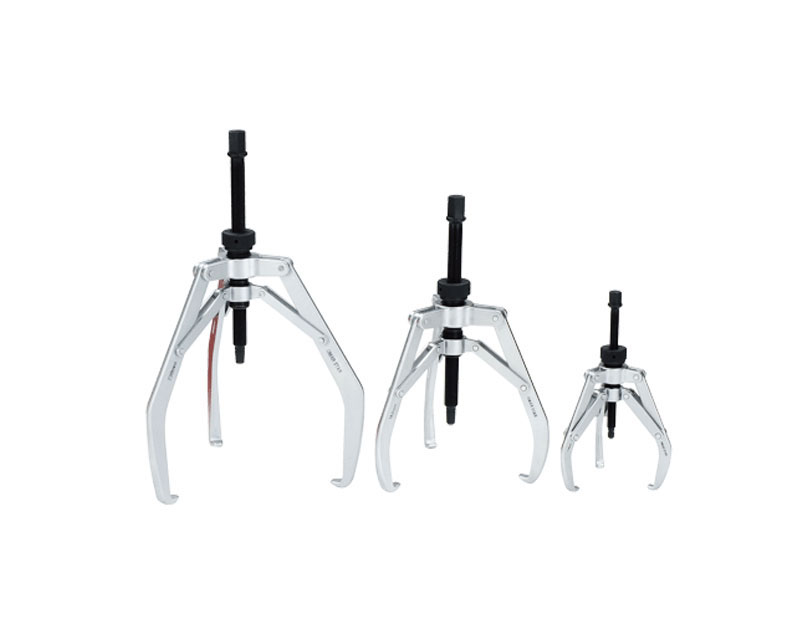

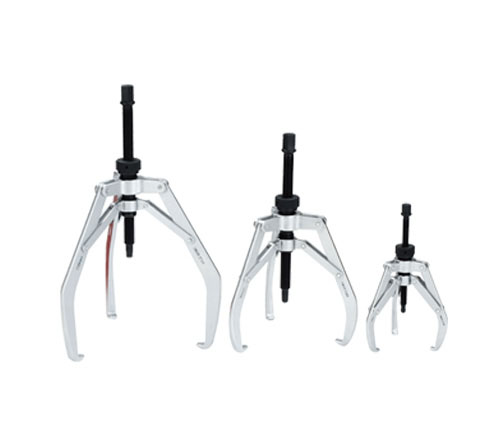

Mechanical Pullers


PK Series

Features

  • Unique "Synchronised-Acting" jaws system for one man efficient working.
  • Roll threaded shaft reduces efforts even on application of high torque.
  • Heat treated and Anodized Jaws for max. safety and durability.
  • Anodized three jaw cross head for rust prevention.
  • Self-locking jaws eliminate the puller jaw slipping off under loading and/or parts dismounted after.
  • Pullers with 3 Jaws for added strings.


  • Technical Data
    Model : PK 130 PK 230 PK 295
    Capacity (tonnes) : 5 8 10
    Reach (mm) : 40 50 120
    Spread (mm) : 130 230 295
    Net Weight (kg) : 1.95 4.70 5.95
    Gross Weight (kg) : 2.15 5.26 6.75

Click On Image For Bigger View

CK Series (Internal & External Pullers)

Features

  • These pullers are very convenient for light jobs.
  • The puller design allows the arms to be used for both external and internal extractions.
  • Forged high quality steel components make the pullers very dependable.


  • Technical Data
    Model : CK 65 CK 90 CK 130 CK 160
    Capacity (tonnes) : 1.50 3.00 3.00 4.00
    Reach : 65 mm 100 mm 100 mm 145 mm
    Spread (Whan Used As External Puller)   25 - 65 mm 30- 90 mm 45 - 130 mm 45 - 160 mm
    SpreadSpread (Whan Used As Internal Puller) : 45 - 105 mm 50- 130 mm 50 - 170 mm 60 - 230 mm
    Net Weight (kg) : 0.42 1.00 1.10 2.88
    Gross Weight (kg) : 0.44 1.03 1.13 2.98
    Model : CK 210 CK 270 CK 340
    Capacity (tonnes) : 4.00 5.00 5.00
    Reach : 145 mm 190 mm 190 mm
    Spread : 45 - 210 mm 65- 270 mm 65- 340 mm
    Net Weight (kg) : 3.12 7.73 8.38
    Gross Weight (kg) : 3.22 7.88 8.53

Click On Image For Bigger View
