Hydraulic Tools

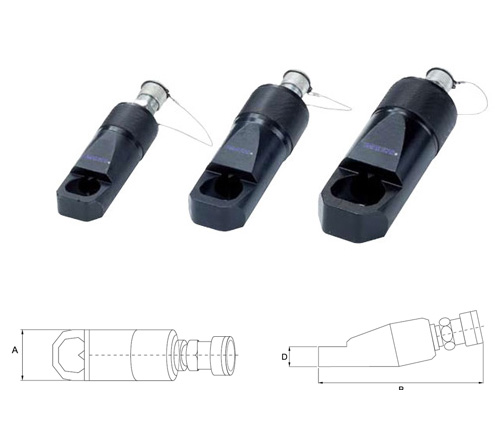

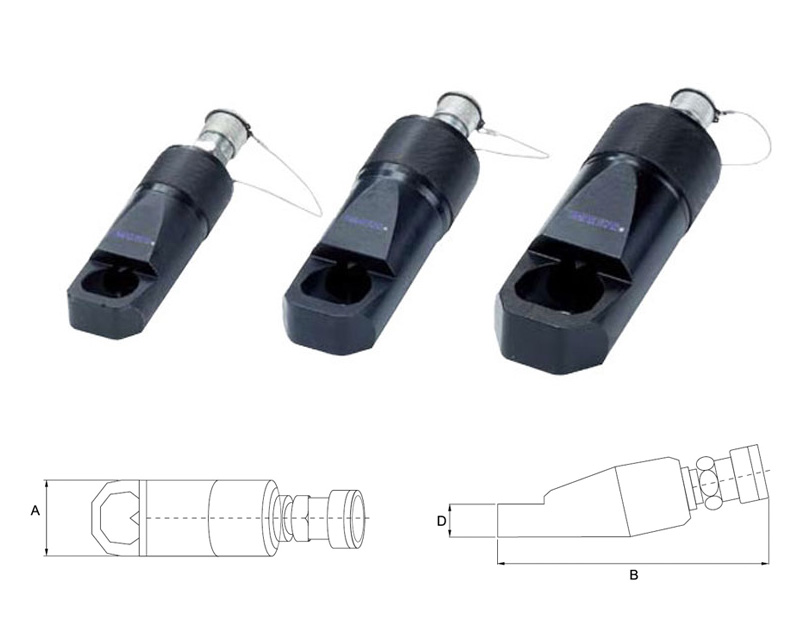

Hydraulic Nut Splitters

Features

  • Convenient tool for removing rusted nuts from flanges etc.
  • To be used with a Hydraulic Pump of 10000 psi.
  • Specially designed and manufactured strong, forged Hydraulic Blade, incorporated.


  • Technical Data
    Model : HNS-1319 HNS-1924 HNS-2432
    Capacity at 700 br (KN) : 49 98 147
    Hexagon Nut Size (mm) : 10-19 19-24 24-32
    Hexagon Nut Size (mm) : 10-19 19-24 24-32
    Bolt Range (mm) : M6-M12 M12-M16 M16-M22
    A : 40 54 64
    B : 192.5 220 253
    D : 19 25 32
    Weight (kg) : 1.2 2.0 3.2
    Model : HNS-3241 HNS-4150 HNS-5060
    Capacity at 700 br (KN) : 196 343 490
    Hexagon Nut Size (mm) : 32-41 41-50 50-60
    Bolt Range (mm) : M22-M27 M27-M33 M33-M39
    A : 75 94 106
    B : 279 318 359
    D : 36 45 54
    Weight (kg) : 4.7 8.5 12.5

Click On Image For Bigger View

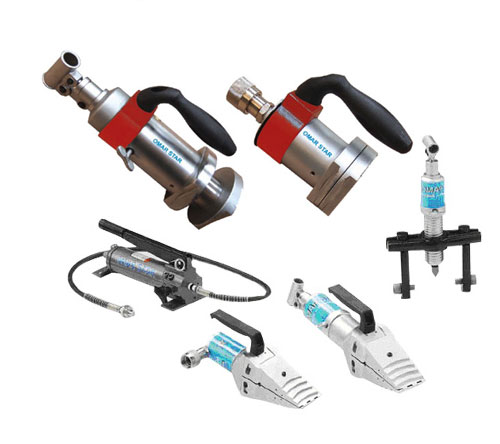

8 to 15 Tonnes Hydraulic Flange Spreader

Features

  • For spreading the flanges (of pipes etc.) stuck to each other.
  • To be used with a Hydraulic Pump with 10,000 psi.
  • Minimum space required for the entry of the tool.


  • Technical Data
    Model : CK2-8 CK2-10 CK2-15 CK3-10 CK3-15
    Maximum Spreading Force (tonnes) : 8 10 15 12 15
    Minimum Required Access Gap (mm) : 1.5 6 6 3 3
    Mass (kg) : 6.8 9.1 10 5 6.25

Click On Image For Bigger View

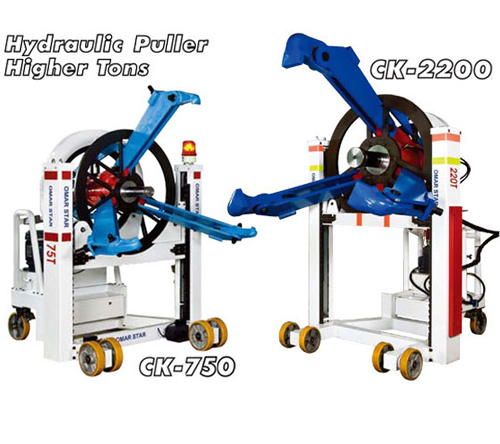

75 to 220 Ton Heavy Duty Hydraulic Puller-Cart Type

Features

  • An ideal puller for steel company, mines, shipyards, petrochemical industry and anywhere large equipment/machinery face tough repair, maintenance challenges.
  • Two poles design providing stability and safety
  • Self-centering 2 & 3 jaws
  • Jaws can rotate 180°
  • Adjusting angle of Jaw tip by nut
  • Wireless remote control lets operating much safer
  • Anti-dropping device
  • Puller can be apart from cart, lift by crane and work in high environment
  • Wheels with torque force, moving speedily


  • Technical Data
    Output : 75 Tons 120  Tons 220 Tons
    Item  No. : CK-750 CK-1200 CK-2200
    Reach (mm) : 490-700 900-1100 900-1100
    Spread (mm) : 110-1220 150-1220 150-1220
    Stroke : 165 170 170
    N.W. : 660 888 1300

Click On Image For Bigger View
