Hydraulic Pullers

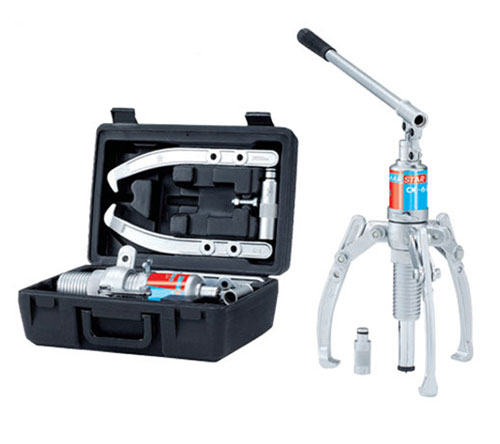

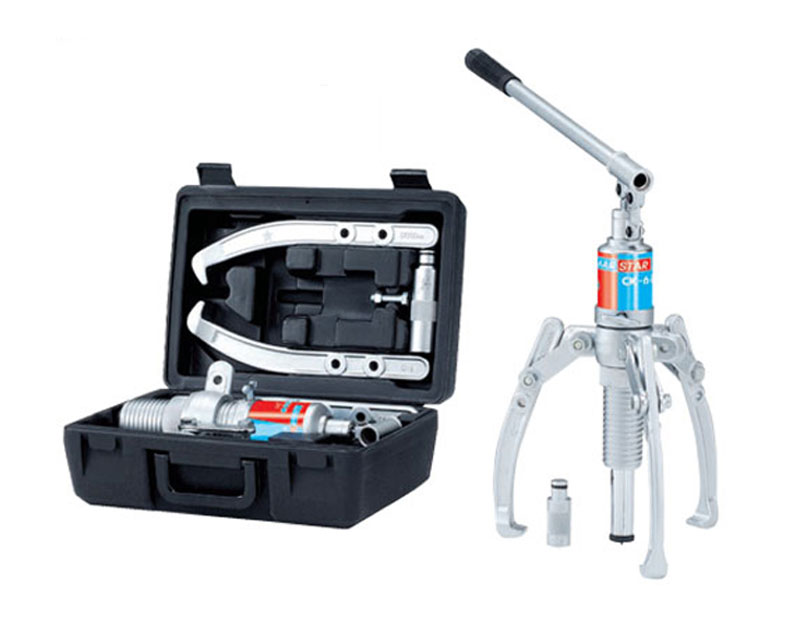

4-15 Tons Integral Pump Standard Jaws

Features

  • Self contained Hydraulic Pump & Puller.
  • Heat treated alloy steel forged jaws.
  • 2/3 way combination puller head.
  • Integral safety release valve.
  • Spring return hydraulic piston.
  • Bright chrome finish to resist corrosion.
  • 360 degree rotatable pump handle.
  • Special adapters to increase stroke.
  • Technical Data
    Model : CK-6sd CK-6in CK-6inL
    Cylinder Output (tonnes) : 4 6 6
    Reach (mm) : 165 165 195
    Spread (mm) : 200 200 200
    Stroke(mm) : 55 82 82
    Puller Weight (kg) : 7.2 7.5 8.1
    Model : CK-8in CK-8inL CK-10in
    Cylinder Output (tonnes) : 8 8 15
    Reach (mm) : 210 240 240
    Spread (mm) : 250 300 280
    Stroke(mm) : 82 82 82
    Puller Weight (kg) : 8.6 9.7 11.7

    L = Long Jaws. Models with suffix "B" also available,
    incorporating both standard and long jaws.

Click On Image For Bigger View

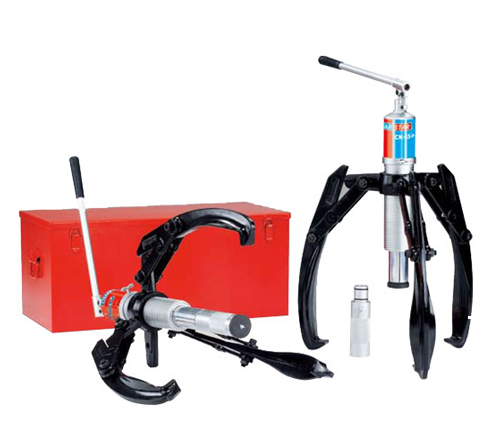

10 - 30 Tonnes (Cobra Jaws & Integral Pump)

Features

  • Life time warranty for cobra jaws.
  • Fast adjusting nut allows speedy adjusting reach.
  • Complete hydraulic puller allows effortless generation of force and dismounting.
  • 2 / 3 jaws combination puller head.
  • The spring-loaded centre point of the hydraulic spindle allows easy centring the puller on the shaft.
  • Forging parts and special treatment provide long life service and the best strength.


  • Technical Data
    Model : CK-6inX CK-6inXL CK-8inX CK-8inXL CK-10inL
    Cylinder Output (tonnes) : 10 10 12 12 15
    Reach (mm) : 195 250 240 280 320
    Spread (mm) : 250 280 300 330 350
    Stroke(mm) : 82 82 82 82 82
    Puller Weight (kg) : 11.6 16.7 18.5 18.5 27.1
    Model : CK-11in CK-11inL CK-12in CK-12inL CK-15in
    Cylinder Output (tonnes) : 20 20 25 25 30
    Reach (mm) : 275 330 315 380 405
    Spread (mm) : 360 380 410 440 540
    Stroke(mm) : 82 82 110 110 110
    Puller Weight (kg) : 23.7 28.2 35.6 37.8 50

    L = Long Jaws. Models with suffix "B" also available, incorporating both standard & long jaws.

Click On Image For Bigger View

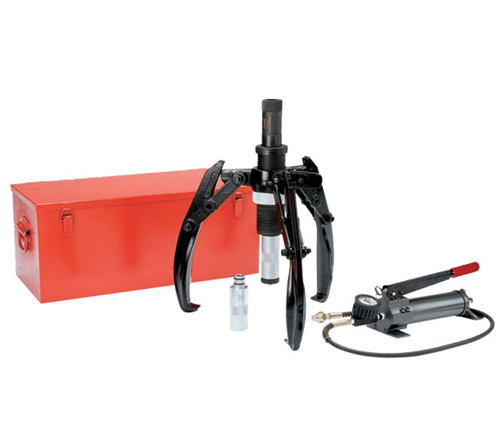

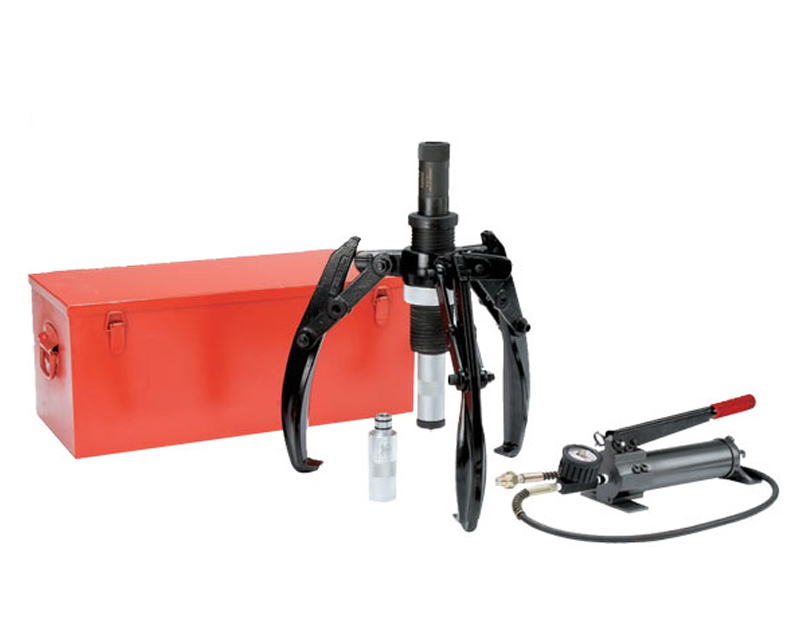

15-50 Tones Separate Pump

Features

  • Separate pumps with pressure gauage to monitor the operation.
  • Hand Pump can be either single speed or double speed.
  • Heat treated alloy steel forged jaws.
  • 2/3 way combination puller head.
  • Life time warranty for cobra jaws.
  • Integral safety release valve.
  • Spring return hydraulic piston.
  • Bright chrome finish to resist corrosion.
  • Special adapters to increase stroke.


  • Technical Data
    Model : CK-105 CK-105L CK-105X CK-105XL CK-135
    Cylinder Output (tonnes) : 15 15 15 15 22.5
    Reach (mm) : 240 320 250 305 315
    Spread (mm) : 280 350 360 380 410
    Stroke(mm) : 82 82 82 82 110
    Puller Weight (kg) : 27.4 31.8 21.8 26.2 39.5
    Model : CK-135L CK-155 CK-25inX CK-25inXS CK-25inXL
    Cylinder Output (tonnes) : 22.5 27.5 50 50 50
    Reach (mm) : 380 405 420 420 635
    Spread (mm) : 440 540 580 580 700
    Stroke(mm) : 110 110 125 125 125
    Puller Weight (kg) : 46.8 53.3 151.4 117.9 132.4

    L = Long Jaws. Models with suffix "B" also available,
    incorporating both standard and long jaws.

Click On Image For Bigger View

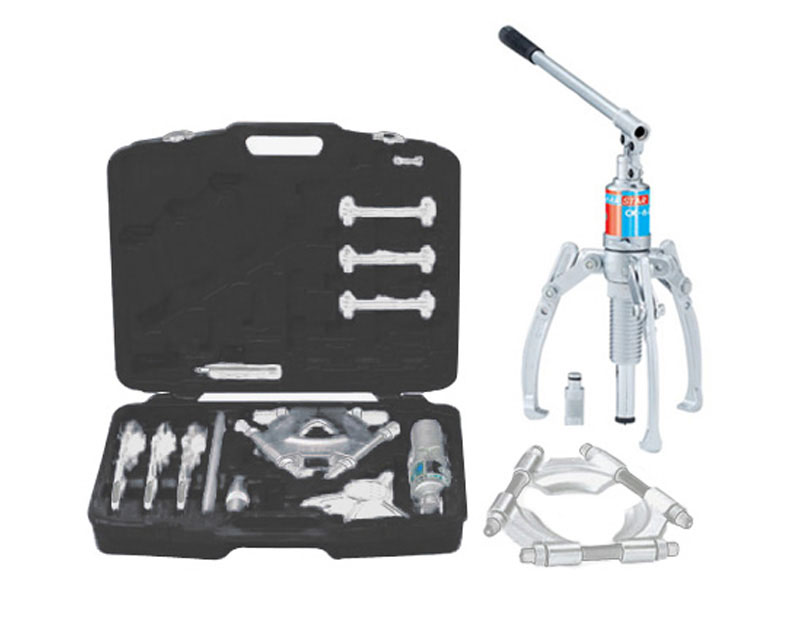

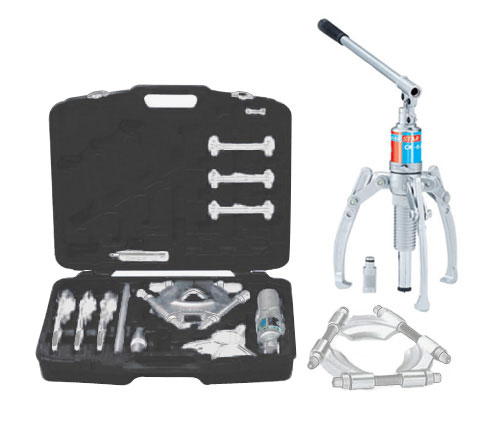

6 to 20 Tons With Trisection Plates

Features

  • Self contained Hydraulic Pump & Puller.
  • Heat treated alloy steel forged jaws.
  • 2/3 way combination puller head.
  • Integral safety release valve.
  • Spring return hydraulic piston.
  • Bright chrome finish to resist corrosion.
  • 360 degree rotatable pump handle.
  • Special adapters to increase stroke.
  • Includes Trisection Plates as an integral part of the sets


  • Technical Data
    Model : CK3-6in CK3-8in CK3-10in
    Cylinder Output (tonnes) : 6 8 15
    Reach (mm) : 165 210 240
    Spread (mm) : 200 300 280
    Stroke(mm) : 82 82 82
    Puller Weight (kg) : 12.4 16.8 19.7
    Model : CK3-6inX* CK3-8inX* CK3-11in*
    Cylinder Output (tonnes) : 10 12 20
    Reach (mm) : 195 240 275
    Spread (mm) : 250 300 360
    Stroke(mm) : 82 82 82
    Puller Weight (kg) : 13.8 20.1 23.0

    Click On Image For Bigger View

Click On Image For Bigger View
