Induction Heaters


Easytherm Series

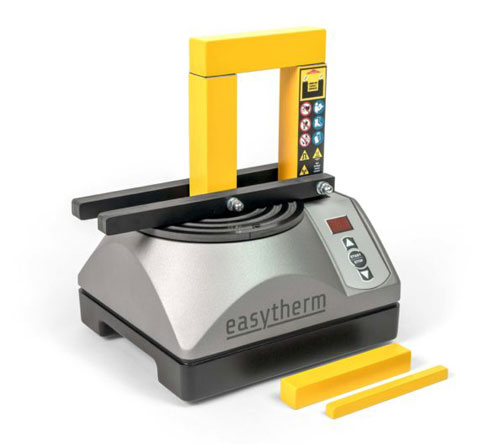

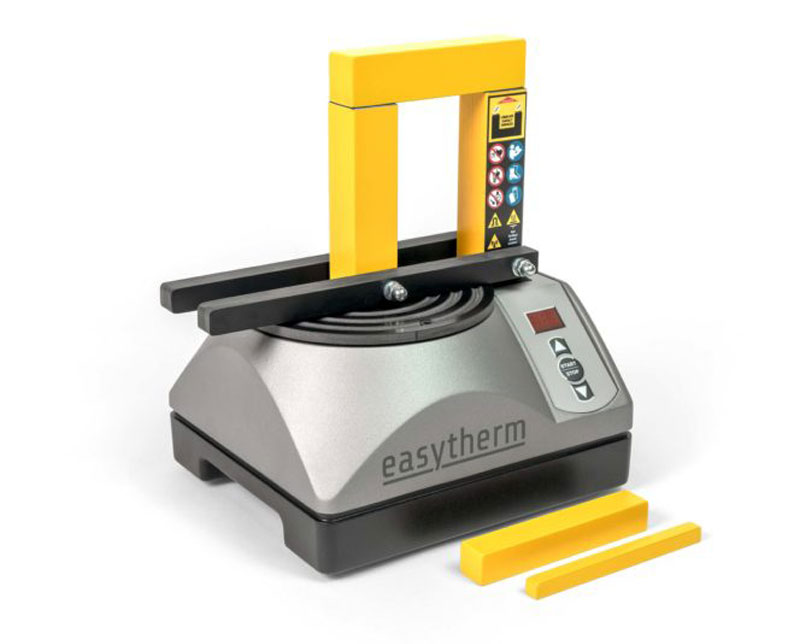

Easytherm 1

The Easytherm 1 is a small and handy microprocessor controlled induction heater for heating small components including bearings up to 10 kg. It is easy to use and portable. The Easytherm 1 comes with a soft carry bag, ideal to use on location.




  • Technical Data
    Voltage : 110 - 230 Vac
    Frequency : 50 or 60 Hz
    Power : 3.6 kVA
    Heater Mass : 7 kg / 15 Ibs
    Dimensions : 225x200x245mm

    8.86”x7.87”x9.65”
    Max. temperature : 240°C/464 °F
    Width U-core (D) : 65mm / 2.56”
    Height U-core (E) : 115mm / 4.53”
    Size Induction Yokes (mm / inch) Min. Bore Part (A) Max. Outer Diameter Part (B) Max. Width Part (C) Max. Weight Part
    7 x 7 x 125 / 0.30 x 0.30 x 4.90 * : 10mm / 0.4” 200mm / 7.87” 60mm / 2.36” 10 kg / 22 lbs
    10 x 10 x 125 / 0.40 x 0.40 x 4.90 : 15mm / 0.6” 200mm / 7.87” 60mm / 2.36” 10 kg / 22 lbs
    14 x 14 x 125 / 0.55 x 0.55 x 4.90 : 30mm / 1.2” 200mm / 7.87” 60mm / 2.36” 10 kg / 22 lbs
    26 x 30 x 125 / 1.00 x 1.20 x 4.90 : 40mm / 1.6” 200mm / 7.87” 95mm / 3.74”(E) 10 kg / 22 lbs

    * = optional

Click On Image For Bigger View

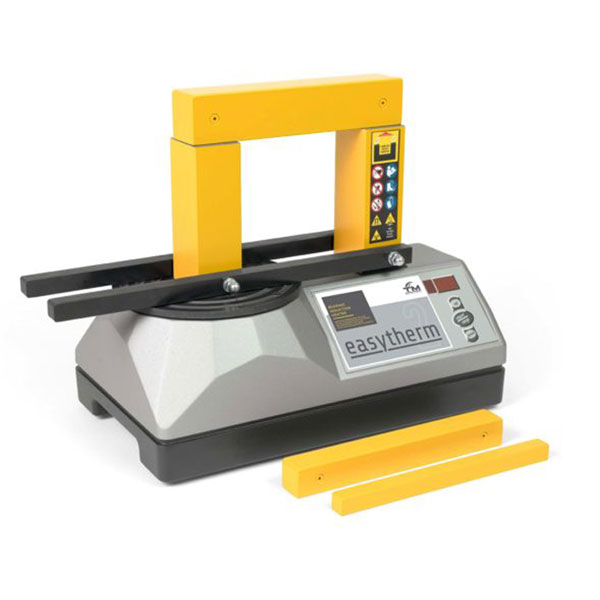

Easytherm 2

The Easytherm 2 is a small powerful microprocessor controlled induction heater for heating small components including bearings up to 40 kg. The robust case is optional and makes it ideal to use on location.





  • Technical Data
    Voltage : 110 - 230 Vac
    Frequency : 50 or 60 Hz
    Power : 3.6 kVA
    Heater Mass : 17 kg / 37 Ibs
    Dimensions : 345x200x240mm

    13.58”x7.87”x9.45”
    Max. temperature : 240°C / 464°F
    Width U-core (D) : 120mm / 4.72”
    Height U-core (E) : 100mm / 3.94”
    Size Induction Yokes (mm / inch) Min. Bore Part (A) Max. Outer Diameter Part (B) Max. Width Part (C) Max. Weight Part
    7 x 7 x 200 / 0.30 x 0.30 x 7.90 * : 10mm / 0.4” 207mm / 8.15” 120mm / 4.72” 3 kg / 6.6 lbs
    10 x 10 x 200 / 0.40 x 0.40 x 7.90 * : 15mm / 0.6” 210mm / 8.27” 120mm / 4.72” 5 kg / 11 lbs
    14 x 14 x 200 / 0.55 x 0.55 x 7.90 : 20mm / 0.8” 215mm / 8.46” 120mm / 4.72” 15 kg / 33 lbs
    24 x 25 x 200 / 0.95 x 1.00 x 7.90 : 35mm / 1.4” 225mm / 8.86” 120mm / 4.72” 25 kg / 55 lbs
    38 x 40 x 200 / 1.50 x 1.60 x 7.90 : 55mm / 2.2” 290mm / 11.42” 120mm / 4.72” 40 kg / 88 lbs

    * = optional

Click On Image For Bigger View

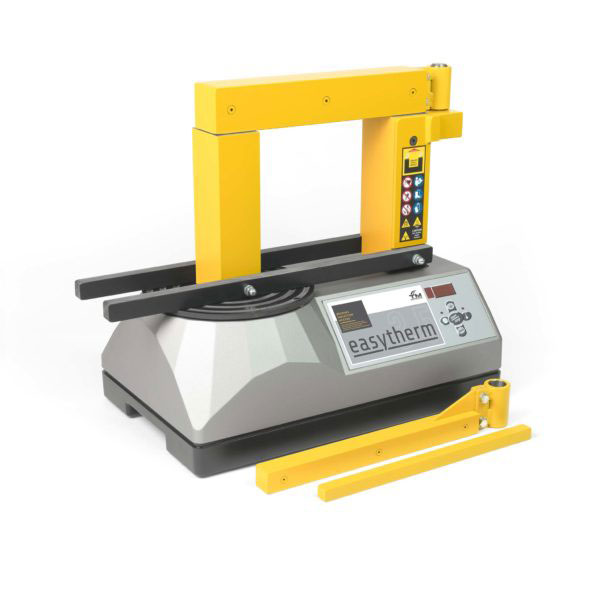

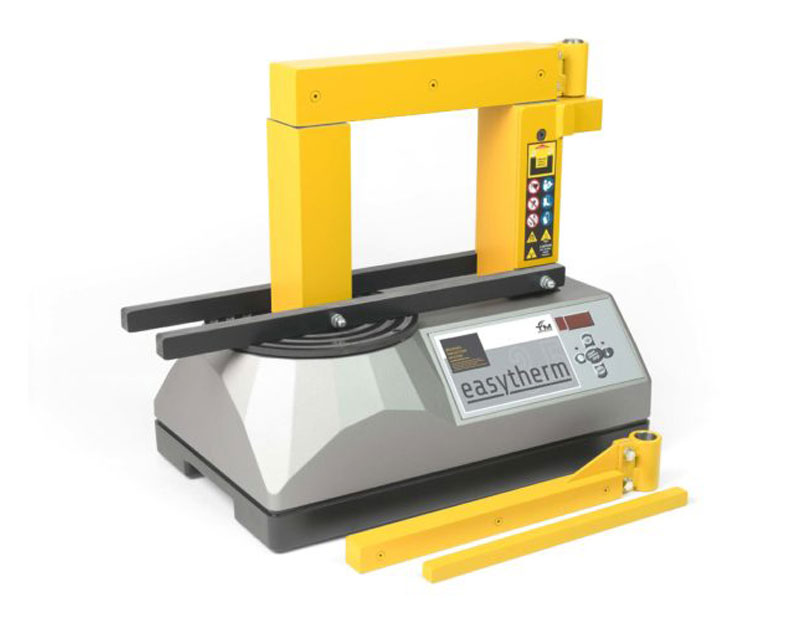

Easytherm 3.5

The Easytherm 3.5 is an induction heater with an ergonomic pivoting yoke. To be used for the professional mounting of a range of parts, including bearings. The Easytherm 3.5 is also available without pivoting yoke.





  • Technical Data
    Voltage : 110 - 230 Vac
    Frequency : 50 or 60 Hz
    Power : 3.6 kVA
    Heater Mass : 31 kg / 68 Ibs
    Dimensions : 420x260x380mm

    16.54”x10.24”x14.96”
    Max. temperature : 240°C / 464°F
    Width U-core (D) : 180mm / 7.09”
    Height U-core (E) : 180mm / 7.09”
    Size Induction Yokes (mm / inch) Min. Bore Part (A) Max. Outer Diameter Part (B) Max. Width Part (C) Max. Weight Part
    10 x 10 x 280 / 0.40 x 0.40 x 11.05 ** : 15mm / 0.6” 330mm / 12.99” 180mm / 7.09” 5 kg / 11 lbs
    14 x 14 x 280 / 0.55 x 0.55 x 11.05 ** : 20mm / 0.8” 345mm / 13.58” 180mm / 7.09” 15 kg / 33 lbs
    24 x 25 x 280 / 0.95 x 1.00 x 11.05 : 35mm / 1.4” 355mm / 13.98” 180mm / 7.09” 25 kg / 55 lbs
    26 x 30 x 280 / 1.00 x 1.20 x 11.05 : 40mm / 1.6” 355mm / 13.98” 180mm / 7.09” 30 kg / 66 lbs
    38 x 40 x 280 / 1.50 x 1.60 x 11.05 : 55mm / 2.2” 360mm / 14.17” 180mm / 7.09” 40 kg / 88 lbs
    48 x 50 x 280 / 1.90 x 2.00 x 11.05 : 70mm / 2.75” 410mm / 16.14” 180 mm / 7.09” 35-70 kg / 77-154 lbs

    ** = non-pivoting

Click On Image For Bigger View

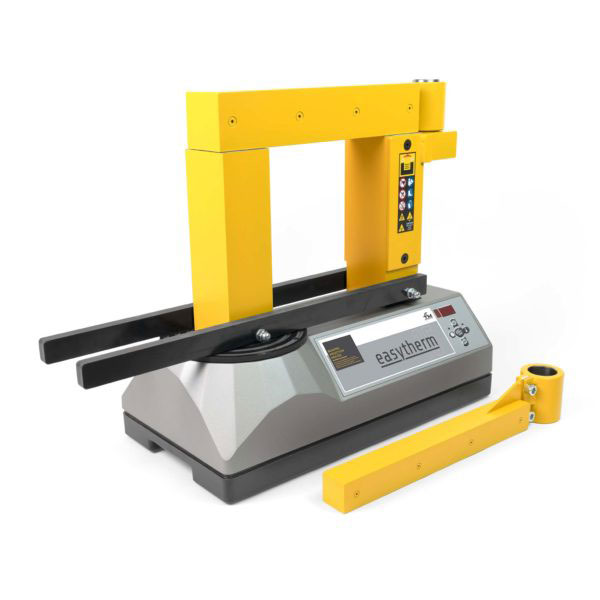

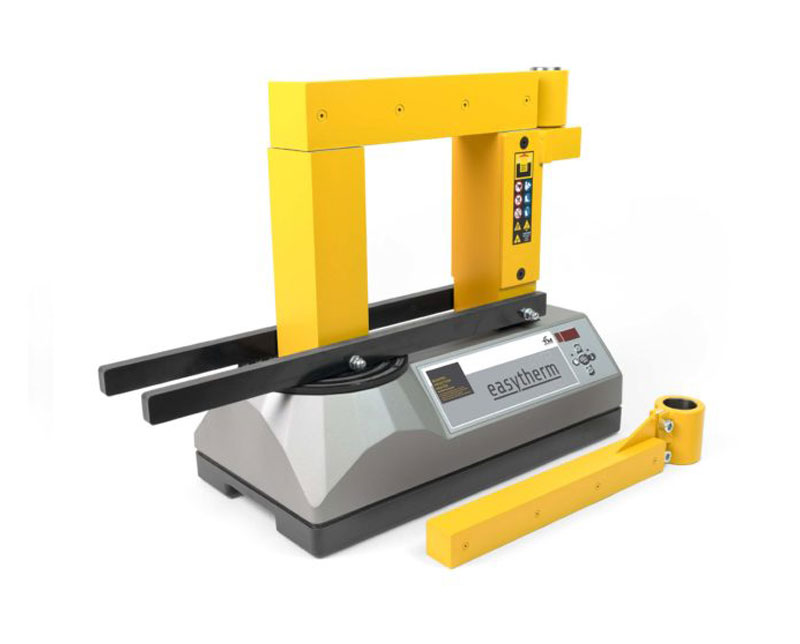

Easytherm 15

The Easytherm 15 is a powerful, 460 Volt, stationary, induction heater with ergonomic pivoting yoke. To be used for the professional mounting of a range of parts including bearings. Typically used in maintenance shops and production areas.





  • Technical Data
    Voltage : 380 - 480 Vac
    Frequency : 50 or 60 Hz
    Power : 12.8 kVA
    Heater Mass : 51 kg / 112 Ibs
    Dimensions : 505x260x470mm

    19.88”x10.24”x18.50”
    Max. temperature : 240 / 400°C

    464 / 752°F
    Width U-core (D) : 210mm / 8.27”
    Height U-core (E) : 245mm / 9.65”
    Size Induction Yokes (mm / inch) Min. Bore Part (A) Max. Outer Diameter Part (B) Max. Width Part (C) Max. Weight Part
    20 x 20 x 350 / 0.80 x 0.80 x 13.80 : 30mm / 1.2” 460mm / 18.11” 210mm / 8.27” 15 kg / 33 lbs
    26 x 30 x 350 / 1.00 x 1.20 x 13.80 : 40mm / 1.6” 475mm / 18.70” 210mm / 8.27” 20 kg / 44 lbs
    38 x 40 x 350 / 1.50 x 1.60 x 13.80 : 55mm / 2.2” 485mm / 19.09” 210mm / 8.27” 25 kg / 55 lbs
    48 x 50 x 350 / 1.90 x 2.00 x 13.80 : 70mm / 2.75” 500mm / 19.69” 210mm / 8.27” 35 kg / 77 lbs
    60 x 60 x 350 / 2.40 x 2.40 x 13.80 : 85mm / 3.35” 515mm / 20.28” 210mm / 8.27” 60 kg / 132 lbs
    70 x 70 x 350 / 2.80 x 2.80 x 13.80 : 100mm / 3.95” 515mm / 20.28” 210mm / 8.27” 150 kg / 330 lbs

    Maximum outer diameter and width can be increased with the use of extension yokes.

Click On Image For Bigger View

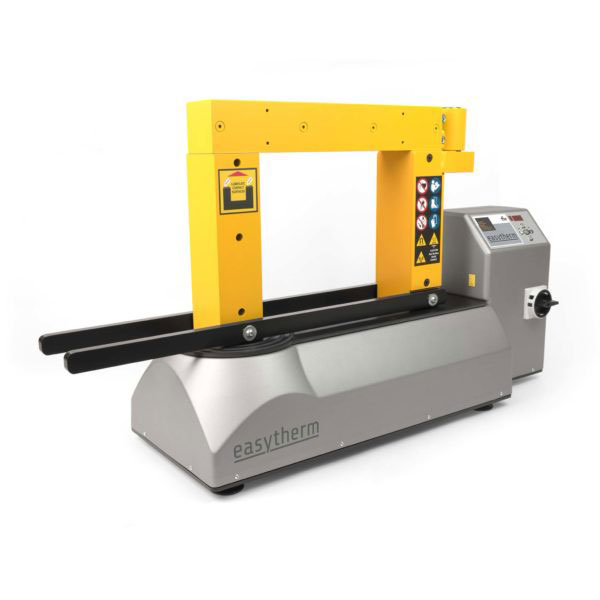

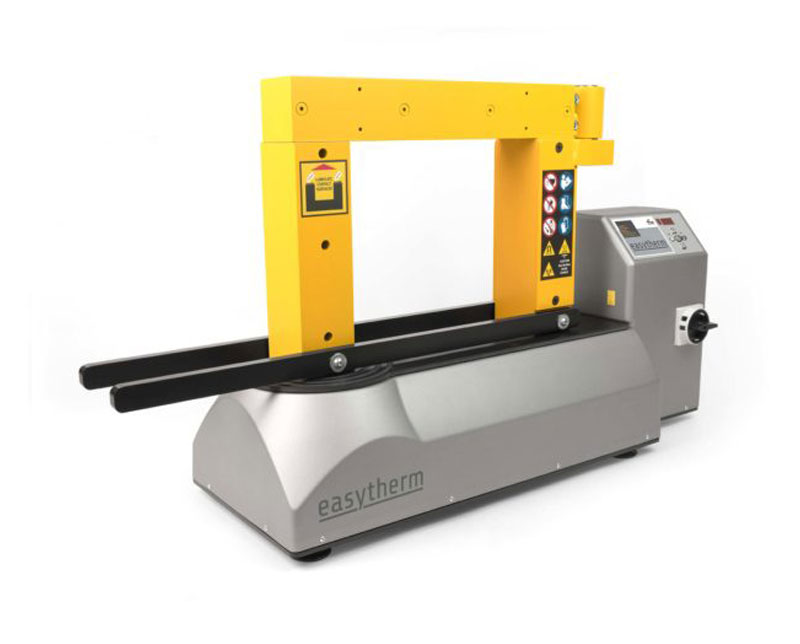

Easytherm 30

The Easytherm 30 is a powerful, 460 Volt, stationary, induction heater with ergonomic pivoting yoke. To be used for the professional mounting of a range of parts including bearings. Typically used in maintenance shops and production areas.





  • Technical Data
    Voltage : 380 - 480 Vac
    Frequency : 50 or 60 Hz
    Power : 12.8 kVA
    Heater Mass : 60 kg / 132 Ibs
    Dimensions : 880x320x570mm

    34.65”x12.60”x22.44”
    Max. temperature : 240°C / 464°F
    Width U-core (D) : 330mm / 12.99”
    Height U-core (E) : 295mm / 11.61”
    Size Induction Yokes (mm / inch) Min. Bore Part (A) Max. Outer Diameter Part (B) Max. Width Part (C) Max. Weight Part
    20 x 20 x 490 / 0.80 x 0.80 x 19.30 : 30mm / 1.2” 620mm / 24.41” 330mm / 12.99” 15 kg / 33 lbs
    26 x 30 x 490 / 1.00 x 1.20 x 19.30 : 40mm / 1.6” 630mm / 24.80” 330mm / 12.99” 20 kg / 44 lbs
    38 x 40 x 490 / 1.50 x 1.60 x 19.30 : 55mm / 2.2” 640mm / 25.20” 330mm / 12.99” 25 kg / 55 lbs
    48 x 50 x 490 / 1.90 x 2.00 x 19.30 : 70mm / 2.75” 650mm / 25.59” 330mm / 12.99” 35 kg / 77 lbs
    60 x 60 x 490 / 2.40 x 2.40 x 19.30 : 85mm / 3.35” 660mm / 25.98” 330mm / 12.99” 60 kg / 132 lbs
    70 x 70 x 490 / 2.80 x 2.80 x 19.30 : 100mm / 3.95” 670mm / 26.38” 330mm / 12.99” 80 kg / 176 lbs
    80 x 80 x 490 / 3.15 x 3.15 x 19.30 : 115mm / 4.55” 740mm / 29.13” 330mm / 12.99” 300 kg / 661 lbs

Click On Image For Bigger View

30 + trolley

With the trolley the Easytherm 30 can easily be assembled into a movable model. The large castors make it easily movable and allow the unit to be used where needed.





  • Technical Data
    Voltage : 380 - 480 Vac
    Frequency : 50 or 60 Hz
    Power : 12.8 kVA
    Heater Mass : 85 kg / 187 Ibs
    Dimensions : 1060x500x1090mm

    41.73”x19.69”x42.91”
    Max. temperature : 240°C / 464°F
    Width U-core (D) : 330mm / 12.99”
    Height U-core (E) : 295mm / 11.61”

Click On Image For Bigger View

Extension yokes

Using an extension yoke it is possible for the user to heat a workpiece with a larger maximum outer diameter, on a relatively small heater





  • Technical Data
    Type heater Measurements (mm / inch) Max. outer diameter part
    Easytherm 2 40x50x75 / 1.57x1.97x2.95 375mm / 14.76”
    Easytherm 3.5 50x50x120 / 1.97x1.97x4.72 600mm / 23.62”
    Easytherm 15 70x70x150 / 2.76x2.76x5.91 770mm / 30.31”
    Easytherm 15 70x70x200 / 2.76x2.76x7.87 870mm / 34.25”
    Easytherm 30 80x80x150 / 3.15x3.15x5.91 980mm / 38.58”
    Easytherm 30 80x80x200m / 3.15x3.15x7.87 1080mm / 42.52”

Click On Image For Bigger View

Easytherm 60

The Easytherm 60 is a robust powerful 460 Volt stationary induction heater, to be used for the professional mounting of heavy parts including bearings, typically used in maintenance shops and production areas.

The Easytherm 60 can be assembled into an ergonomic production machine for specifc parts using the optional lift installation (see optional parts).





  • Technical Data
    Voltage : 380 - 480 Vac
    Frequency : 50 or 60 Hz
    Power : 25 kVA
    Heater Mass : 350 kg / 771 Ibs
    Dimensions : 780x1200x1060mm

    30.71”x47.24”x41.73”
    Max. temperature : 240°C / 464°F
    Width U-core (D) : 440mm / 17.32” *
    Height U-core (E) : 390mm / 15.35” *
    Size Induction Yokes (mm / inch) Min. Bore Part (A) Max. Outer Diameter Part (B) Max. Width Part (C) Max. Weight Part
    26 x 30 x 700 / 1.00 x 1.20 x 27.55 : 45mm / 1.6” 830mm / 32.68” 410mm / 16.14” 700 kg / 1543 lbs
    38 x 40 x 700 / 1.50 x 1.60 x 27.55 : 55mm / 2.2” 840mm / 33.07” 410mm / 16.14” 700 kg / 1543 lbs
    48 x 50 x 700 / 1.90 x 2.00 x 27.55 : 70mm / 2.75” 850mm / 33.46” 410mm / 16.14” 700 kg / 1543 lbs
    60 x 60 x 700 / 2.40 x 2.40 x 27.55 : 85mm / 3.35” 860mm / 33.86” 410mm / 16.14” 700 kg / 1543 lbs
    70 x 70 x 700 / 2.80 x 2.80 x 27.55 : 100mm / 3.95” 870mm / 34.25” 410mm / 16.14” 700 kg / 1543 lbs
    80 x 80 x 700 / 3.15 x 3.15 x 27.55 : 115mm / 4.55” 880mm / 34.65” 410mm / 16.14” 700 kg / 1543 lbs
    90 x 90 x 700 / 3.55 x 3.55 x 27.55 : 130mm / 5.1” 890mm / 35.04” 410mm / 16.14” 700 kg / 1543 lbs
    100 x 100 x 700 / 3.95 x 3.95 x 27.55 : 145mm / 5.7” 900mm / 35.43” 410mm / 16.14” 700 kg / 1543 lbs

Click On Image For Bigger View

Optional Parts for Easytherm 60 and 100

Trolley

With the trolley the Easytherm 60 and 100 can be assembled easily to a movable model. The large robust castors make it movable and allow the unit to be used where needed.

Lifting device

The lifting device makes it possible to lift the heavier induction yokes. With this device an external elevating crane is not needed.

Hoist attachment points

The 4 hoist attachment points make it easier to move the heater with a crane in the factory.

Click On Image For Bigger View

Easytherm 100

The Easytherm 100 is a robust powerful 460 Volt stationary induction heater, to be used for the professional mounting of heavy parts. With easy to mount lift installation and rail system for the parts, the Easytherm 100 can be assembled to an ergonomic production machine.





  • Technical Data
    Voltage : 380 - 575 Vac
    Frequency : 50 or 60 Hz
    Power : 40 kVA
    Heater Mass : 800 kg / 1763 Ibs
    Dimensions : 1200x1700x1250mm

    47.24”x66.93”x49.21”
    Max. temperature : 240°C / 464°F
    Width U-core (D) : 470mm / 18.50” *
    Height U-core (E) : 690mm / 27.17” *
    Size Induction Yokes (mm / inch) Min. Bore Part (A) Max. Outer Diameter Part (B) Max. Width Part (C) Max. Weight Part
    60 x 60 x 850 / 2.40 x 2.40 x 33.45 : 85mm / 3.35” 1500mm / 59.06” 470mm / 18.50” 1250 kg / 2755 lbs
    80 x 80 x 850 / 3.15 x 3.15 x 33.45 : 115mm / 4.55” 1500mm / 59.06” 470mm / 18.50” 1250 kg / 2755 lbs
    100 x 100 x 850 / 3.95 x 3.95 x 33.45 : 145mm / 5.7” 1500mm / 59.06” 470mm / 18.50” 1250 kg / 2755 lbs
    150 x 150 x 850 / 5.90 x 5.90 x 33.45 : 215mm / 8.45” 1500mm / 59.06” 470mm / 18.50” 1250 kg / 2755 lbs

    * Other measurements on request

Click On Image For Bigger View

Easytherm 250

The Easytherm 250 is a very robust and powerful 460 Volt stationary microprocessor controlled induction heater, to be used for the professional mounting of a range of heavy parts including bearings up to 3000 kg. The Easytherm 250 is a custom made product. Parts up to 10.000 kg can be heated with a modifcation of the coil. When press mounting is not an option the Easytherm 250 offers the solution.





  • Technical Data
    Voltage : 380 - 480 Vac
    Frequency : 50 or 60 Hz
    Power : 100 kVA
    Heater Mass : 1800 kg / 3968 Ibs
    Dimensions : 1500x3000x2000mm

    59.06”x118.11”x78.74”
    Max. temperature Width U-core (D) Height U-core (E) : 240°C / 464 °F
    Width U-core (D) : 750mm / 29.53” *
    Height U-core (E) : 1000mm / 39.3
    Size Induction Yokes (mm / inch) Min. Bore Part (A) Max. Outer Diameter Part (B) Max. Width Part (C) Max. Weight Part
    100x100x1250 / 3.94x3.94x49.21 : 145mm / 5.71” 2000mm / 78.74” 620mm / 24.41” 3000 kg / 6613 lbs
    150x150x1250 / 5.91x5.91x49.21 : 215mm / 8.46” mm 2000mm / 78.74” 620mm / 24.41” 3000 kg / 6613 lbs
    200x200x1250 / 7.87x7.87x49.21 : 284mm / 11.18” 2000mm / 78.74” 620mm / 24.41” 3000 kg / 6613 lbs

Click On Image For Bigger View

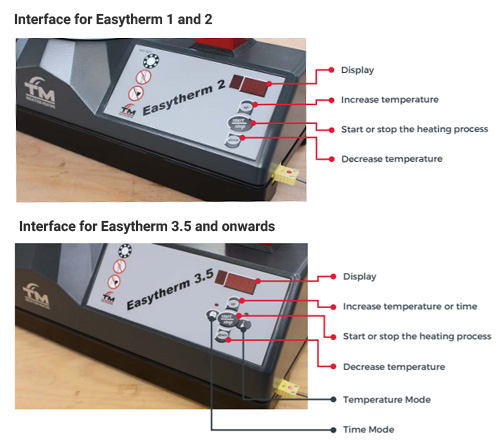

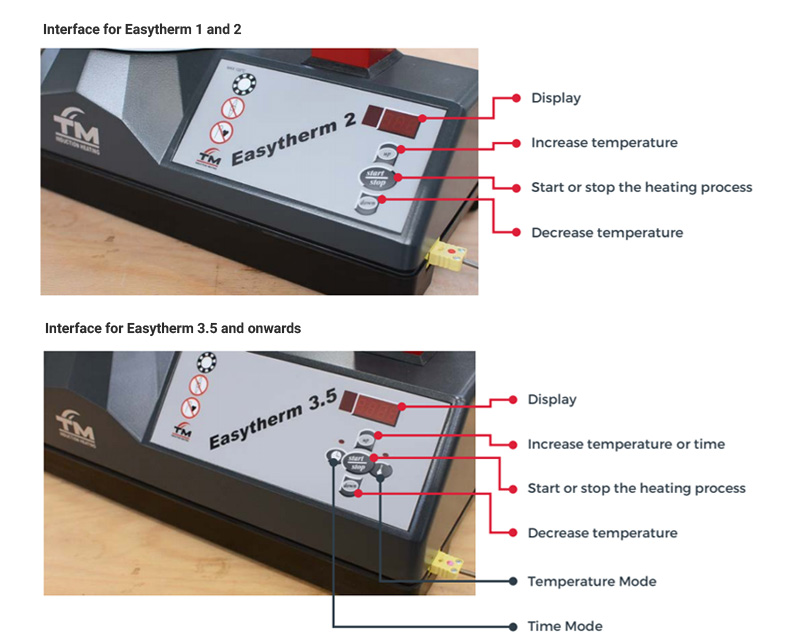

Intelligent electronic unit

Electronic unit

  • Intelligent programmable electronic unit
  • Possible to set time* and temperature to heat big parts uniform
  • Safe: count down before the heater start.
  • Temperature control accuracy +/- 2%
  • Timer* accuracy 0.01 sec
  • Power can be set manual from 0-100%


Uniform heating

To provide controllable heating by setting a “ramp” function, specially developed for heating gears and bearings. The user can set the temperature and time. The unit will heat the part exactly to the set temperature in the set time. A major advantage realized is minimal temperature differential between internal and external components thus reducing the potential for material stress

Click On Image For Bigger View
