Transport Trolleys

TROLLEY

Information and Overview

  • Optimal capacity and weight ratio due to innovative construction.
  • High quality castors with precision ball bearings and extremely durable coating. On K- and Series G with aluminium core for reduced weight.
  • Connecting bars guarantee alignment of rollers even in curves, models 6 metric tons and up with joint.
  • Steel clasps on steerable trolleys JL 12 K, JL 14 K, JLB 16 S, JLB 24 S, JLB 15 G, JLB 20 G, JLB 25 G, JLB 30 G, JLB 40 H, JL 60 H and JL 80 H for easy loading and unloading from/into vehicles.
  • Steerable trolley equipped with ball bearing supported turntable.
  • Pulling bar with handle, over 6 metric tons with towing eye.

Click On Image For Bigger View

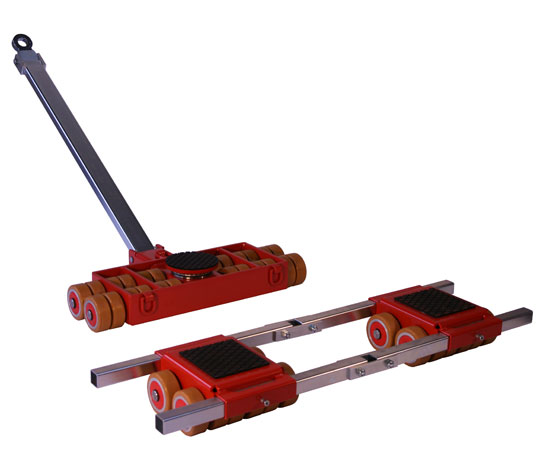

Transport trolleys series K

for loads up to 24 metric tons, height 110 mm
Galvanized axles and safety clip rings for improved protection against corrosion. Equipped with highest quality rollers as standard. Reduced weight through advanced construction of load cassettes.

All transport trolleys are ready for use:
the steerable transport trolley is fitted with a ball bearing supported turntable and a handlebar. The adjustable-width transport trolley consists of two transport units and connecting bar. Non-marking support wheels. The Series K handlebars are also available with a removable handle. The removable handle is also available as a re-fitting set.


  • Technical Data
    Type Sketch JLB 3 K JFB 3 K JLB 6 K JFB 6 K
    Load capacity
    		kg/ lbs 3 000/ 6 600 2x 1 500/ 2 x 3 300 6 000/ 13 200 2 x 3 000/ 2 x 6 600
    Number of castors
    		Stick/ pcs. 4 4 8 8
    Castors dimensions ø x I mm/ in 85 x 85/ 3.3" x 3.3" 85 x 85/ 3.3" x 3.3" 85 x 85/ 3.3" x 3.3" 85 x 85/ 3.3" x 3.3"
    Height
    		mm/ in 110/ 4.3" 110/ 4.3" 110/ 4.3" 110/ 4.3"
    Supporting surface per cassette E x F mm/ in
    		120 x 80/ 4.7" x 3.1"
    		170 x 170/ 6.7" x 6.7"
    Cassette dimensions L 2 x B 2 mm/ in
    		190 x 115/ 7.5" x 4.5"
    		325 x 200/ 12.8" x 7.9"
    Connecting bar with joint Length mm/ in
    		1 000**/ 39.4"
    		1 230/ 48.4"
    Cassettes adjustable from - to G - H mm/ in
    		125 - 880/ 4.9" - 34.6"
    		400 - 1 030/ 15.7" - 40.6"
    Supporting surface of turnable ø C mm/ in 150/ 5.9"
    		150/ 5.9"
    Dimensions L 1 x B 1 mm/ in 225 x 280/ 8.9" x 11"
    		445 x 590/ 17.5" x 23.2"
    Handlebar with pulling eye Length mm/ in 990*/ 39"
    		1 120/ 44.1"
    Weight with JUWAthan®plus
    		kg/ lbs 12/ 26 11/ 24 33/ 72 25/ 55


    Type Sketch JL 9 K JFB 9 K JL 12 K JFB 12 K
    Load capacity
    		kg/ lbs 9 000/ 19 800 2 x 4 500/ 2x 9 900 12 000/ 26 400 2 x 6 000/ 2 x 13 200
    Number of castors
    		Stick/ pcs. 12 12 16 16
    Castors dimensions ø x I mm/ in 85 x 85/ 3.3 x 3.3" 85 x 85/ 3.3 x 3.3" 85 x 85/ 3.3 x 3.3" 85 x 85/ 3.3" x 3.3"
    Height
    		mm/ in 110/ 4.3" 110/ 4.3" 110/ 4.3" 110/ 4.3"
    Supporting surface per cassette E x F mm/ in
    		170 x 170/ 6.7" x 6.7"
    		170 x 170/ 6.7" x 6.7"
    Cassette dimensions L 2 x B 2 mm/ in
    		325 x 390/ 12.8" x 15.4
    		325 x 390/ 12.8" x 15.4
    Connecting bar with joint Length mm/ in
    		1 230/ 48.4"
    		1 230/ 48.4"
    Cassettes adjustable from - to G - H mm/ in
    		400 - 1 030/ 15.7- 40.6"
    		400 - 1 030/ 15.7"- 40.6"
    Supporting surface of turnable ø C mm/ in 170/ 6.7"
    		170/ 6.7"
    Dimensions L 1 x B 1 mm/ in 580 x 820/ 22.8" x 32.3"
    		580 x 1000/ 22.8" x 39,3"
    Handlebar with pulling eye Length mm/ in 1 120/ 44.1"
    		1 120/ 44.1"
    Weight with JUWAthan®plus
    		kg/ lbs 54/ 119 32/ 70 64/ 141 35/ 77

Click On Image For Bigger View

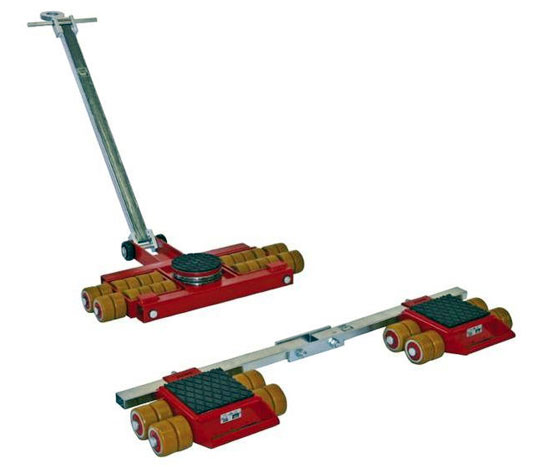

Transport trolleys series K professional

for loads up to 20 metric tons, height 110 mm

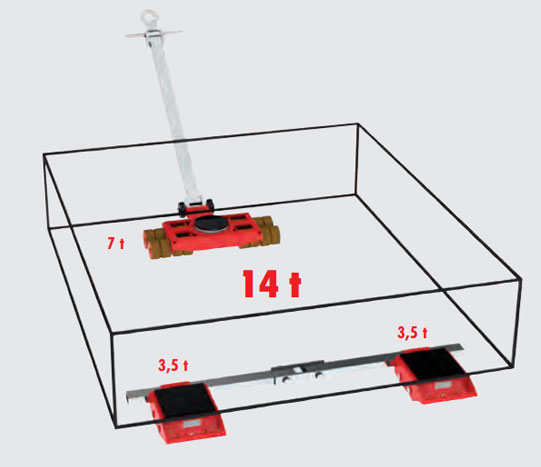

Example for load distribution on 14 metric tons trolley combination

for loads up to 28 metric tons, height 110 mm
Galvanized axles and safety clip rings for improved protection against corrosion. The double roller design results in dramatically easier steering due to reduced friction forces in curves. The much lower friction resistance also causes the rollers on the rear axis to follow in a truer course. You need 30% less power for steering. Higher capacity with professional castors, at same dimension as series K trolleys.

All transport trolleys are ready for use:
the steerable transport trolley is fitted with a ball bearing supported turntable and a handlebar The adjustable-width transport trolley consists of two transport units and connecting bar. The series K handlebars are now also available with a removable handle, which is also available as a re-fitting set. Non-marking support wheels.


  • Technical Data
    Type Sketch JLB 7 K JFB 7 K JL 10 K JFB 10 K JL 14 KK JFB 14 K
    Load capacity
    		kg/ lbs 7 000/ 15 400 2 x 3 500/ 2x 7700 10 000/ 22 000 2 x 5 000/ 2 x 11 000 14 000/ 30 800 2 x 7 000/ 2 x 15 400
    Number of castors
    		Stick/ pcs. 8 8 12 12 16 16
    Castors dimensions ø x I mm/ in 85 x 85/ 3.3" x 3.3" 85 x 85/ 3.3" x 3.3" 85 x 85/ 3.3 x 3.3" 85 x 85/ 3.3" x 3.3" 85 x 85/ 3.3" x 3.3" 85 x 85/ 3.3" x 3.3"
    Height
    		mm/ in 110/ 4.3" 110 / 4.3" 110/ 4.3" 110/ 4.3" 110/ 4.3" 110/ 4.3"
    Supporting surface per cassette E x F mm/ in
    		170 x 170/ 6.7" x 6.7"
    		170 x 170/ 6.7" x 6.7"
    		170 x 170/ 6.7" x 6.7"
    Cassette dimensions L 2 x B 2 mm/ in
    		325 x 200/ 12.8" x 7.9"
    		325 x 390/ 12.8" x 15.4
    		325 x 390/ 12.8" x 15.4
    Connecting bar with joint Length mm/ in
    		1 230/ 48.4"
    		1 230/ 48.4"
    		1 230/ 48.4"
    Cassettes adjustable from - to G - H mm/ in
    		400 - 1 030/ 15.7"- 40.6"
    		400 - 1 030/ 15.7"- 40.6"
    		400 - 1 030/ 5.7"- 40.6"
    Supporting surface of turnable ø C mm/ in 150/ 5.9"
    		170/ 6.7"
    		170/ 6.7"
    Dimensions L 1 x B 1 mm/ in 445 x 590"/ 17.5 x 23.2"
    		580 x 820/ 22.8" x 32.3"
    		580 x 1 000/ 22.8" x 39,3"
    Handlebar with pulling eye Length mm/ in 1 120/ 44.1"
    		1 120/ 44.1"
    		1 120/ 44.1"
    Weight with JUWAthan®plus
    		kg/ lbs 35/ 77 27/ 59 56/ 123 34/ 75 65/ 143 39/ 86

Click On Image For Bigger View

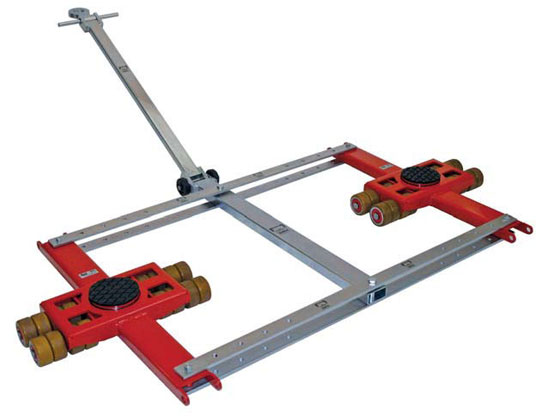

Tandem trolleys series K

for loads up to 14 metric tons, height 110 mm
Tandem transport trolley for loads with no leading or trailing edge centre support. Galvanized axles and safety clip rings for improved protection against corrosion. The double roller design results in dramatically easier steering due to reduced friction forces in curves. The much lower friction resistance also causes the rollers on the rear axis to following in directional stability.

Ready for use:
2 interconnected steerable trolleys with 2 handlebars and two tandem connecting bars.

Multi-purpose use:
Also useable as two single trolleys, each with half of the combined load capacity. No additional accessories needed. Non-marking support wheels.


  • Technical Data
    Type Sketch JTLB 6 K JTLB 14 K
    Load capacity
    		kg/ lbs 6 000/ 13 200 14 000/ 330 800
    Number of castors
    		Stick/ pcs. 8 16
    Castors dimensions ø x I mm/ in 85 x 85/ 3.3" x 3.3" 85 x 85/ 3.3 " x 3.3"
    Height
    		mm/ in 110/ 4.3" 110/ 4.3"
    Supporting surface per cassette E x F mm/ in 600 x 280/ 23.6" x 11" 1 000 x 590/ 39.4" x 23.2"
    Cassette dimensions L 2 x B 2 mm/ in 150/ 5.9" 150/ 5.9"
    Connecting bar with joint Length mm/ in 1 000/ 39.4" 1 400/ 55.1"
    Cassettes adjustable from - to G - H mm/ in 560 -960*/ 22" - 37.3"* 660 - 1 340*/ 25.9"- 52.7"*
    Supporting surface of turnable ø C mm/ in 5 x 5 x
    Dimensions L 1 x B 1 mm/ in 760 x 1 240/ 29.9" x 48.8" 1 070 x 1 580/ 42.1" x 62.1"
    Handlebar with pulling eye Length mm/ in 990**/ 39"** 1 120/ 44.1"
    Weight professional
    		kg/ lbs 46/ 101 104/ 229

Click On Image For Bigger View

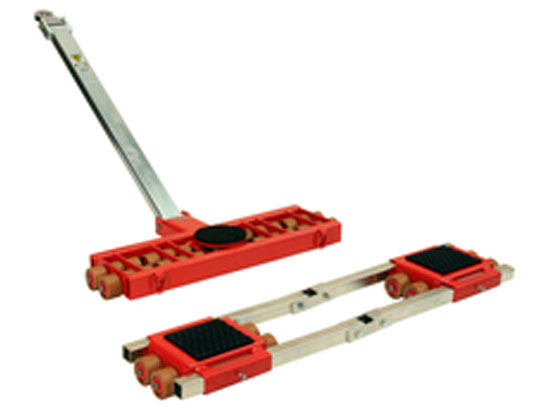

Transport trolleys series S

for loads up to 48 metric tons, height 125 mm
Pivoting roller cassettes within the frame (except for JLB 16 S) assure even pressure distribution across all rollers and across the floor. Short roller design (60 mm fitting length) results in easier steering due to reduced friction forces also in curves. Very low height at only 125 mm, with high capacity and less own weight.

All transport trolleys are ready for use:
the steerable transport trolley is fitted with a ball bearing supported turntable and a handlebar. The adjustable-width transport trolley consists of two transport units and connecting bar.


  • Technical Data
    Type Sketch JLB 16 S JFB 16 S JLB 24 S JFB 24 S
    Load capacity
    		kg/ lbs 16 000/ 35 300 2 x 8 000/ 2 x 17 600 24 000/ 52 900 2 x 12 000/ 2 x 26 400
    Number of castors
    		Stick/ pcs. 16 16 24 24
    Castors dimensions ø x I mm/ in 90 x 60/ 3.5" x 2.3" 90 x 60/ 3.5" x 2.3" 90 x 60/ 3.5 x 2.3" 90 x 60/ 3.5 x 2.3"
    Height
    		mm/ in 125/ 4.9" 125/ 4.9" 125/ 4.9" 125/ 4.9"
    Supporting surface per cassette E x F mm/ in
    		200 x 220/ 7.9" x 8.7"
    		200 x 220/ 7.9" x 8.7"
    Cassette dimensions L 2 x B 2 mm/ in
    		370 x 330/ 14.6" x 13"
    		370 x 465/ 14.6" x 18.3"
    Connecting bar with joint Length mm/ in
    		2 x 1 540/ 2 x 60.6"
    		2 x 1 540/ 2 x 60.6"
    Cassettes adjustable from - to G - H mm/ in
    		540-1 300/ 21.3 - 51.2
    		660-1 300/ 26-51.2
    Supporting surface of turnable ø C mm/ in 215/ 8.5"
    		215/ 8.5"
    Dimensions L 1 x B 1 mm/ in 580 x 805/ 22.8" x 31.7"
    		580 x 1 156/ 22.8" x 45.5"
    Handlebar with pulling eye Length mm/ in 1 210/ 47.6"
    		1 480/ 58.3"
    Weight professional
    		kg/ lbs 81/ 180 76/ 168 120/ 264 80/ 176

Click On Image For Bigger View

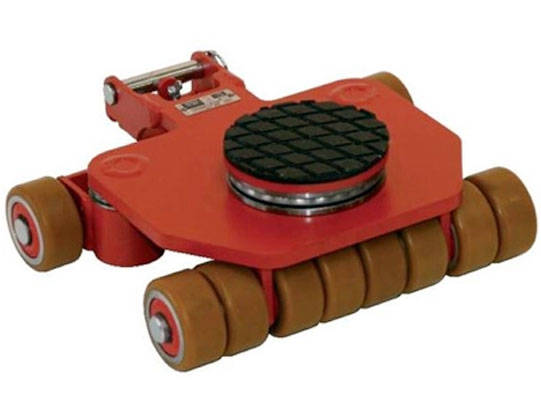

Multi-purpose trolleys series M

for loads up to 5 metric tons, height 150 mm

for loads up to 15 metric tons, height 150 mm Combined leading swivelling rollers with trailing rigid rollers. Swivelling lead-castors make steering easier by up to 80 %.

Ergonomic:

  • reduces handling effort for user.
  • Better directional stability on long straight-line paths with trailing rigid rollers.
  • Each trolley can be used for either steerable or straight-line movements.
  • Extreme manoeuvrable with thrust bearing supported, anti-slip turntable.
  • Trolleys can be used as steerable, adjustable or tandem trolley.
  • Ideal for transporting loads on slalom paths including 90° true-to-course straight-line,turning and sideways manoeuvring.
  • Floor protective, no marking rollers.
  • Low profile. Low weight.
  • Included in set is an additional pulling handle for steering of rear-trailing trolleys for tighter turning radius.


  • Technical Data
    Type Sketch JLF 3,5 JLF 5 JLF Set 12 JLF Set 15
    Load capacity
    		kg/ lbs 3 500/ 7 700 5 000/ 11 000 1 x 5 000 + 2 x 3 500
    1 x 11 000 + 2 x 7 700    		 3 x 5 000/ 3 x 11 000
    Number of castors/ twin castors
    		Stick/ pcs. 4/ 2 4/ 4 3 x 4/ 2 x 2 + 1 x 4 3 x 4/ 3 x 4
    Castors dimensions
    		mm/ in 85 x 43/ 3.3" x 1.7" 85 x 43/ 3.3" x 1.7" 85 x 43/ 3.3" x 1.7" 85 x 43/ 3.3" x 1.7"
    Height
    		mm/ in 150/ 5.9" 150/ 5.9" 150/ 5.9" 150/ 5.9"
    Supporting surface per cassette ø C mm/ in 150/ 5.9" 150/ 5.9" 150/ 5.9" 150/ 5.9"
    Dimensions L 1 x B 1 mm/ in 410 x 420/ 16.1" x 16.5" 410 x 420/ 16.1" x 16.5" 410 x 420/ 16.1" x 16.5" 410 x 420/ 16.1" x 16.5"
    Handlebar with pulling eye
    		- - - 1 210 x 300 x 40/ 47.6" x 11.8" x 1.6" 1 210 x 300 x 40/ 47.6" x 11.8" x 1.6"
    Connecting bar
    		- - - 20 x 1 200/ 0.8" x 47.2" 20 x 1 200/ 0.8" x 47.2"
    Weight with JUWAthan®plus
    		kg/ lbs 25/ 55 28/ 62 95/ 209 102/ 224



    		16 035 085-D 16 050 085-D

Click On Image For Bigger View

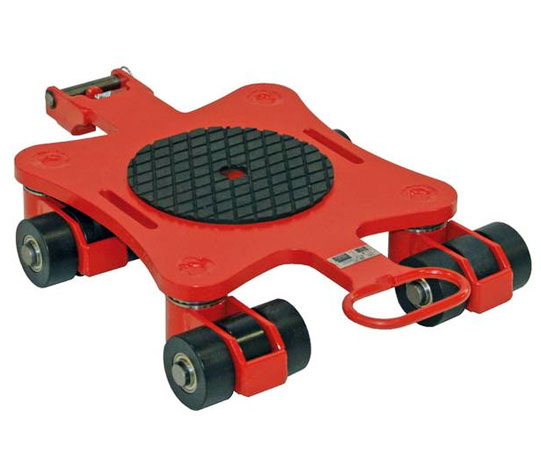

Revolving transport trolleys JKB

or loads up to 6 metric tons, height 110 mm
Example for load distribution on 9 tons JKB 3 Set
Please refer to page 40-41/1 for additional castor information

for loads up to 12 metric tons, height 110 mm
Revolving trolley JKB in action
Please refer to page 40-41/1 for additional castor information

for loads up to 15 metric tons, height 110 mm
Optional connecting bars can be fixed without tools by clamping down on handle. High load capacity at low weight. Bearing supported swivelling rollers allow 360 ° manoeuvrability. Same height trolleys provide interchangeability. Mix and match revolving trolleys withSeries K transport trolleys. All products are also available in a set.

Unrivalled: The double roller system reduces rolling and turning resistance


  • Technical Data
    Type Sketch JKB 1,5 K JKB 1,5 Set JKB 3 K JKB 3 Set JKB 4 K
    Includes

    		1 x JKB 1,5 K 2 x JKB 1,5 K 1 x JKB 3 K 2 x JKB 3 K 1 x JKB 4 K
    Load capacity
    		kg/ lbs 1 500/ 3 300 2 x 1 500/ 2 x 3 300 3 000/ 6 600 2 x 3 000/ 2 x 6 600 4 000/ 8 800
    Number of castors
    		Stück/ pcs. 6 2 x 6 8 2 x 8 12
    Castor dimensions ø x I mm/ in 85 x 43/ 3.3" x 1.7" 85 x 43/ 3.3" x 1.7" 85 x 43/ 3.3" x 1.7" 85 x 43/ 3.3" x 1.7" 85 x 43/ 3.3" x 1.7"
    Height
    		mm/ in 110/ 4.3" 110/ 4.3" 110/ 4.3" 110/ 4.3" 110/ 4.3"
    Supporting surface of turntable ø C mm/ in 150/ 5.9" 150/ 5.9" 250/ 9.8" 250/ 9.8" 250/ 9.8"
    Cassette dimensions L 1 x B 1 mm/ in 530 x 490/ 20.9" x 19.3" 530 x 490/ 20.9" x 19.3" 675 x 435/ 27.2" x 17.1" 675 x 435/ 27.2" x 17.1" 675 x 475/ 27.2" x 18.7"
    Weight JUWAmid
    		kg/ lbs 20/ 44 40/ 88 38/ 84 76/ 168 43/ 95


    Type Sketch JKB 4 Set JKB 6 K JKB 6 Set JKB 7,5 K JKB 7,5 Set
    Composed of

    		2 x JKB 4 K 1 x JKB 6 K 2 x JKB 6 K 1 x JKB 7,5 K 2 x JKB 7,5 K
    Load capacity
    		kg/ lbs 2 x 4 000 / 2 x 8 800 6 000/ 13 200 2 x 6 000/ 2 x 13 200 7 500/ 16 500 2 x 7 500/ 2 x 16 500
    Number of castors
    		Stick/ pcs. 2 x 12 16 2 x 16 20 2 x 20
    Castor dimensions ø x I mm/ in 85 x 43/ 3.3 x 1.7" 85 x 43/ 3.3" x 1.7" 85 x 43/ 3.3" x 1.7" 85 x 43/ 3.3" x 1.7" 85 x 43/ 3.3" x 1.7"
    Height
    		mm/ in 110/ 4.3" 110/ 4.3" 110/ 4.3" 110/ 4.3" 110/ 4.3"
    Supporting surface of turntable ø C mm/ in 250/ 9.8" 250/ 9.8" 250/ 9.8" 250/ 9.8" 250/ 9.8"
    Cassette dimensions L 1 x B 1 mm/ in 675 x 475/ 27.2" x 18.7" 675 x 525/ 27.2" x 20.7" 675 x 525/ 27.2" x 20.7" 895 x 740/ 35.8" x 29.1" 895 x 740/ 35.8" x 29.1"
    Weight JUWAmid
    		kg/ lbs 86/ 190 44/ 97 89/ 194 63,5/ 140 127/ 280

Click On Image For Bigger View
